Opis
2-way, bi-amplified in Bass- Reflex design
B&C custom designed 380 mm (15″) neodymium woofer with 75 mm (3″) voice coil
B&C 36 mm (1.4″) compression driver with 64 mm (2.5″) voice coil
700Wrms PWM LF power amplifier
200Wrms Class G HF power amplifier
Switch mode power supply for an excellent ratio weight/power
Analog signal processor limiter

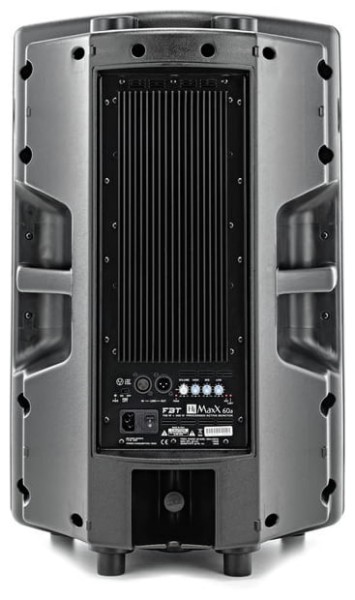

Completely redesigned control panel with:
XLR Input and XLR Link
Gain and Volume functions in a single potentiometer to improve user friendliness improving the dynamic range and input signal/noise ratio
3-band EQ (Bass, Mid, High)
Ground-lift
Diagnostic LED
90°H x 60°V constant directivity horn
4 x M10 anchoring points, 35 mm ø (1.38″) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles
Specifications:
Configuration: 2 way
Built-in amplifier LF/HF: 1100/250 W RMS
Built-in amplifier peak LF/HF: 2200/500 W
Frequency response: 40 Hz – 20 kHz -6dB
Low Frequency woofer: 1×15″ – 3″ coil
High Frequency driver: 1.4″ – 2.5″ coil
Maximum SPL cont/peak: 129/135 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 kohm
Crossover Frequency: 1.2 kHz
Input connector: XLR with loop
Power cord: 5 m
Net Dimension (WxHxD): 482 x 757 x 600 mm
Net Weight: 28.3 kg
Transport Dimension (WxHxD): 520 x 867 x 600 mm
Transport Weight: 30.3 kg
