Opis
Bass-reflex design with high SPL and punch
380 mm (15″) high excursion magnet woofer with 75 mm (3″) voice coil
Frequency response from 40Hz to 140Hz
New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

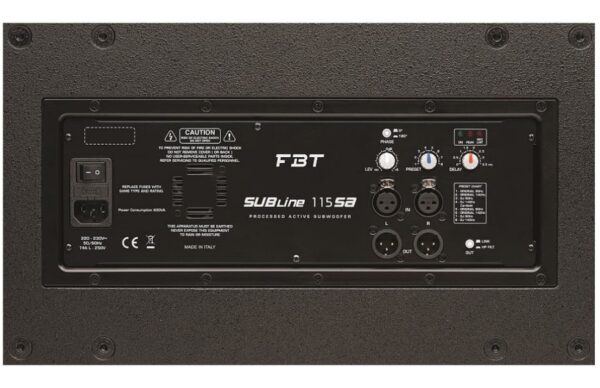

Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25 m to 3.5 m, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59″) birch plywood scratch resistant enclosure with internal bracing
M20 (20 mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Specifications:
Configuration: 1 way
Built-in amplifier LF/HF: 700 W RMS
Built-in amplifier peak LF/HF: 1400 W
Frequency response: 38 Hz – 140 Hz -6dB
Low Frequency woofer: 15 inch
Maximum SPL cont/peak: 132/135 Half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 kohm
Crossover Frequency: 90 or 140 Hz
AC Power requirements: 640 VA
Input connector: stereo XLR with loop, HP out
Power cord: 6 m
Net Dimension (WxHxD): 500 x 517 x 570 mm
Net Weight: 28 kg
Transport Dimension (WxHxD): 600 x 617 x 670 mm
Transport Weight: 32 kg
