Opis

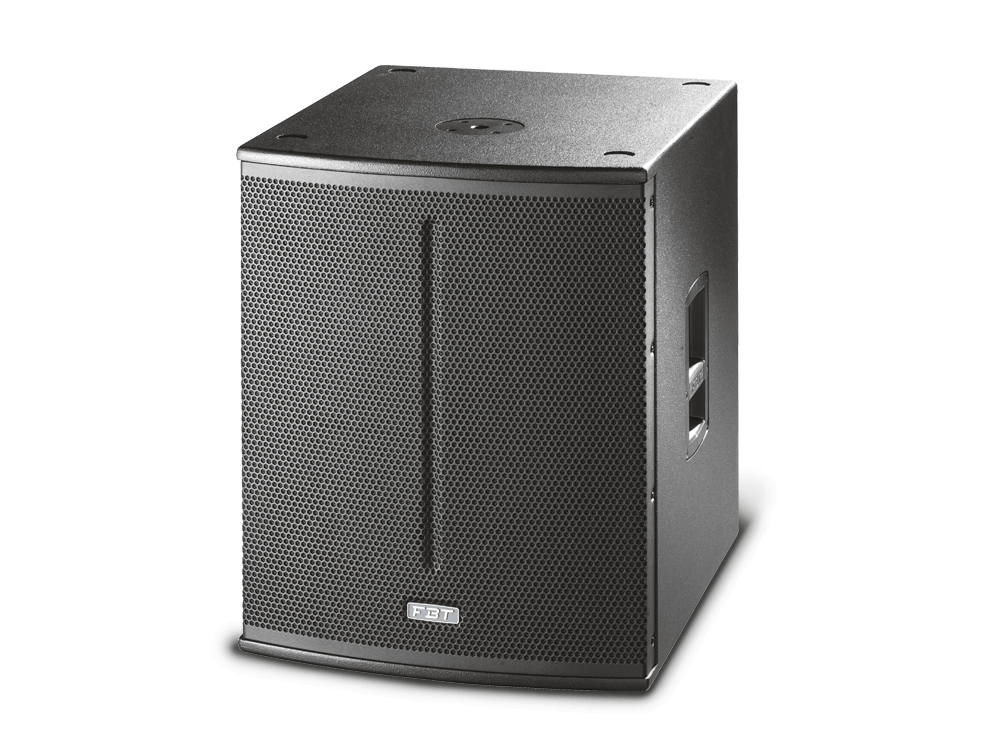

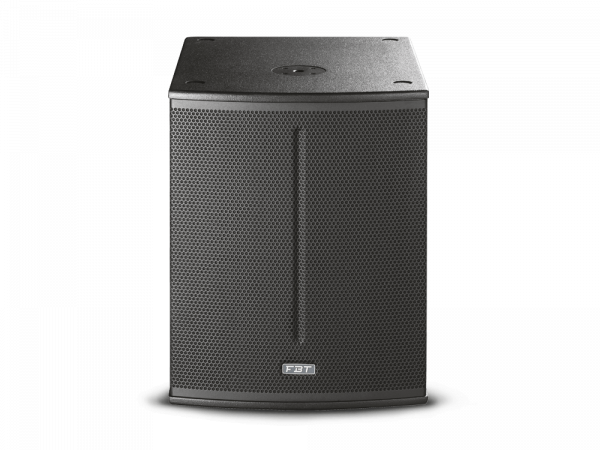

Compact band-pass design subwoofer with high SPL and punch
460 mm (18″) high excursion woofer with 75 mm (3″) voice coil
Frequency response from 38Hz to 120Hz
1200W Class D power amplifier with switch mode supply
Digital Signal processor with 6 presets, 2 equalization with 2 LPF crossover settings

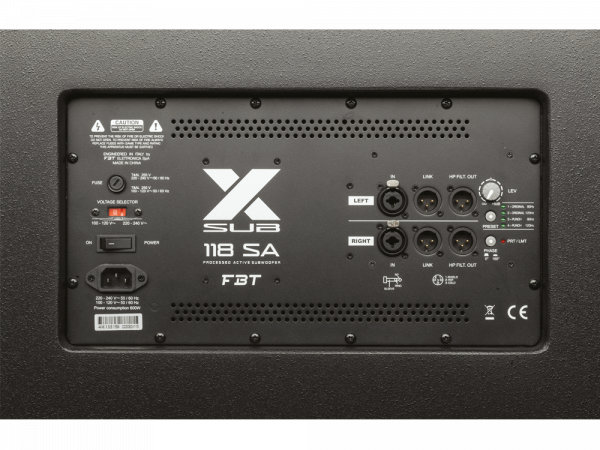

Control panel with stereo combo XLR/Jack in/outs, Stereo XLR HP-Filter outs, Volume, EQ presets, phase reversal switch 0°-180°, status LED indicators
18mm plywood cabinet with scratch & scuff resistant paint finish
M20 (20 mm) top mount speaker stand socket, two FBT design aluminum handles, 100 mm optional wheels
Provides additional low frequency reinforcement when used along with X-PRO or X-LITE speaker series
Specifications:
Configuration: 1 way
Built-in amplifier LF/HF: 1200 W RMS
Frequency response: 38 Hz – 120 Hz -6dB
Low Frequency woofer: 18″ – 3″ coil
Maximum SPL cont/peak: 136 half- space dB
Dispersion: omni
Input impedance: 22 kohm
Input connector: XLR ST with loop, XLR ST OUT
Power cord: 5 m
Net Dimension (WxHxD): 510 x 692 x 650 mm
Net Weight: 34 kg
Transport Dimension (WxHxD): 700 x 840 x 800 mm
Transport Weight: 37 kg
