Guil ABZ-14

Opis

Heavy-duty aluminium hook clamp with protective mounting plate to not mark the truss/tube. To be used for vertical loads only. It comes with a bolt, washer and nut to secure spotlights, electronic devices, etc.

Ease of use and a great design for a safe fixture of lights to truss / tubes with an external diameter of 30 mm to 50 mm.

ABZ-14 has a quality finish which makes it the most attractive option for installations where elegance and strength are important determining factors.

Made with a 40 mm x 14 mm aluminium bar, it is very strong and robust, becoming the indispensable clamp for touring events where they are used frequently, continually being installed and removed as well as for fixed installations.

SPECIFICATIONS:
Maximum Load: 250 kg
For tube diameters: 30 – 50 mm
Flat metal bar: 40 x 14 mm
Fixings: M10 x 35 mm
Pressure T-bar screw: M12 x 60 mm

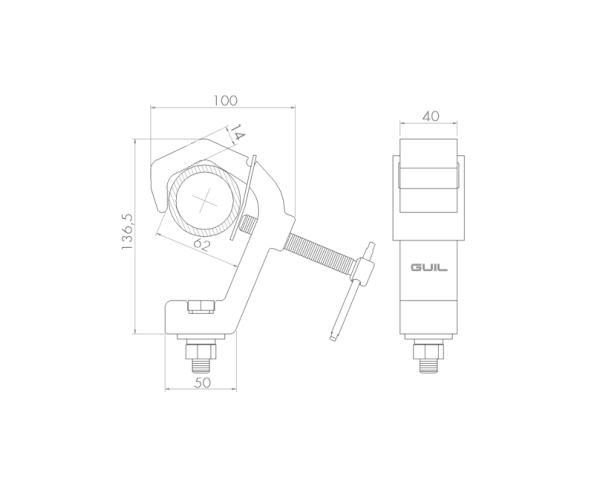

Measures: 100 x 136.5 mm
Material: Aluminium
Colour: Aluminium
Net Weight: 0,59 kg
