Guil RMP-03

Opis

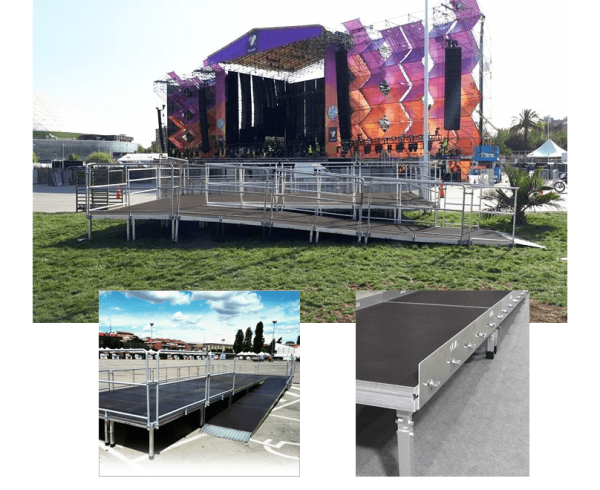

GUIL Stage Ramps for disabled access consist of two basic elements:

Standard TM440, TM300 or TM440XL Decks with adjustable legs and connectors (as many units as necessary to set the ramp length and angle requested). Note: The platforms that form the ramp must be joined using the connectors that are supplied with the platforms.
RMP-03 Ramp kit for stages of 80 to 120 cm high (other measurements on request), includes:
1 x 1 m Aluminium diamond plate starter ramp. Net weight: 13.5 kg.
Two frame clamp connectors made in stainless steel ref. TMU-02. Net weight: 0.66 kg / 2 units.
Two fixed aluminium legs (50 x 50 mm) for the platform that is located next to the diamond plate starter ramp.
Net weight: 0.28 kg / 2 units.
Two special telescopic, angle adjustable aluminium legs for the platform that is located next to the stage. Net weight: 5.64 kg / 2 units.
GUIL ramps can be used can be used both indoors and outdoors. This practical ramp kit to make ramps for disabled access with GUIL platforms has a total net weight of 20 kg.
