Opis

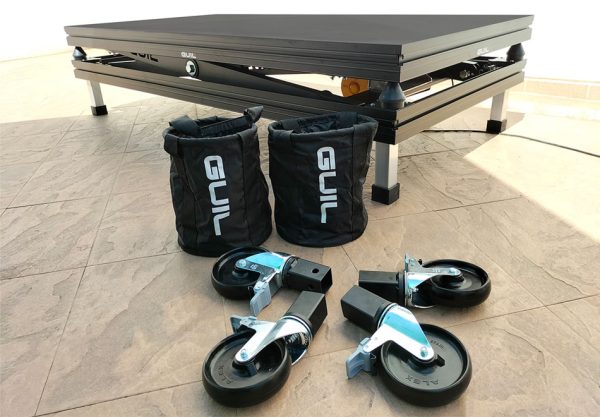

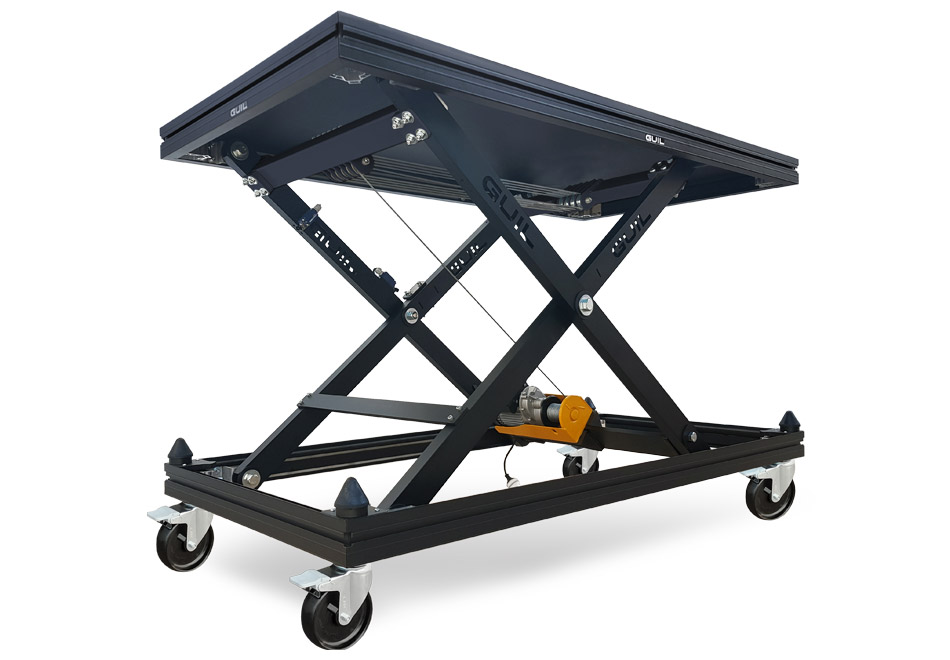

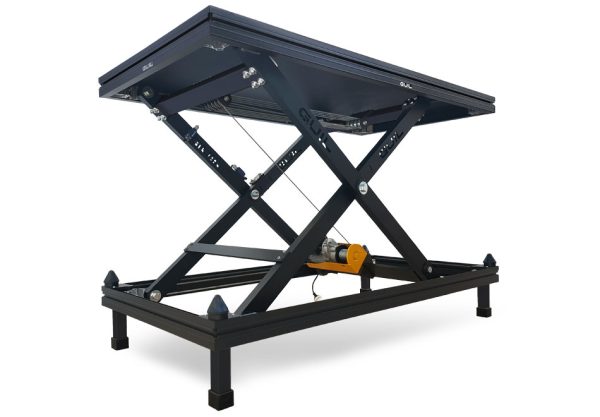

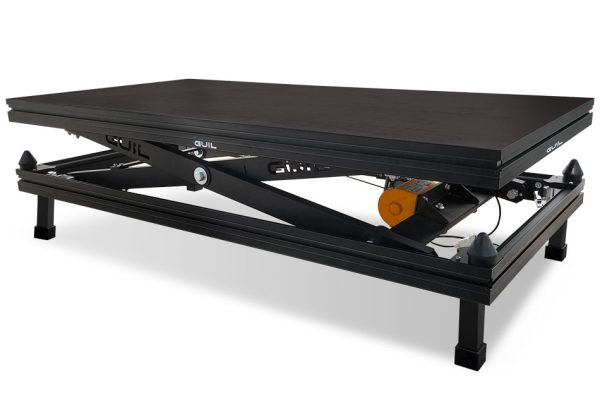

From a minimum working height of 46 cm, the electric hoist can lift the platform to a maximum height of 150cm. The 150mm wheels can be fitted to the bottom frame to move the platform to where it will be used, where the legs will be fitted instead of the wheels for perfect stability.
SPECIFICATIONS:
Model: MOTORISED STAGE PLATFORM – Electric elevation
Maximum Height: 150 cm
Minimum Height: 46 cm
Net Weight: With legs: 130 Kg, With wheels: 134 Kg
Dimension: 2×1 m
Remote Control: Wireless, with emergency stop
Maximum Load: 125 kg/m2(1,25 kN/m2), 250 kg per deck
Panel:
100 % Birch Wood
Thickness: 15 mm (Nº layers: 11)
Phenolic plywood (WBP)
Environment: PEFC Certificate
Reaction to fire: Classification: B-s1 (According to norm: EN 13501-1)
Non-slip surface: R13 (According to norm: DIN 51130)
Material:
Frames: Reinforced Aluminium, alloy, EN AW 6063 80-T6
Lifting mechanism: Reinforced aluminium (alloy EN AW 6063 80-T6)
Use: Plywood for indoor and outdoor use. The motor must be guarded from adverse weather.
Stacking dimension: 200 x 100 x 26 cm
