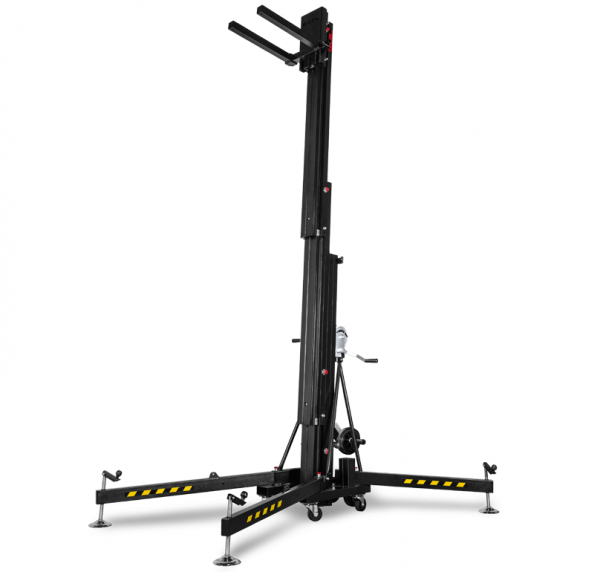

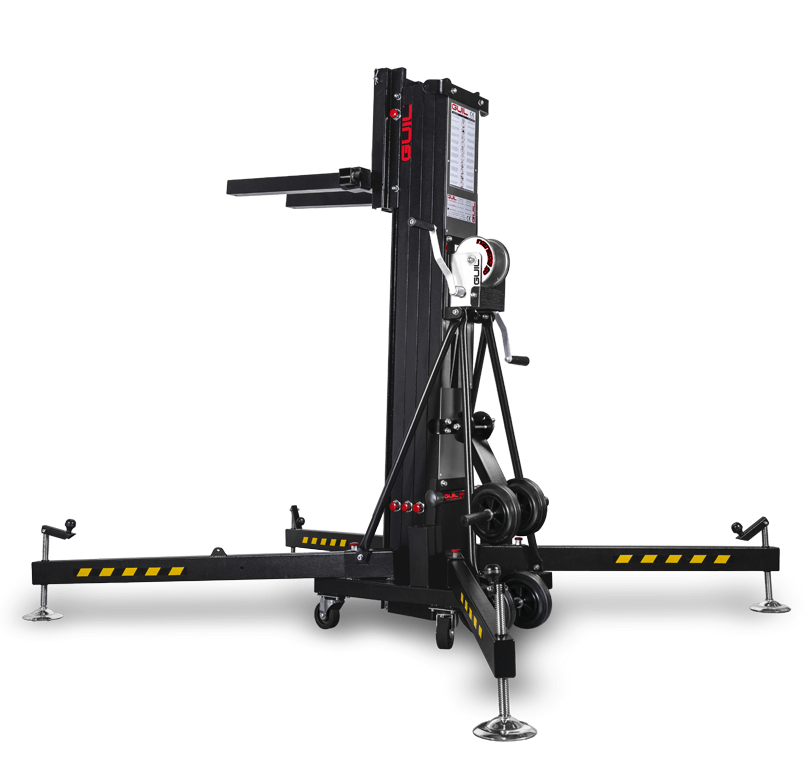

Lifting Tower designed to lift loads of up to 400 kg up to a maximum height of 6.5 m.

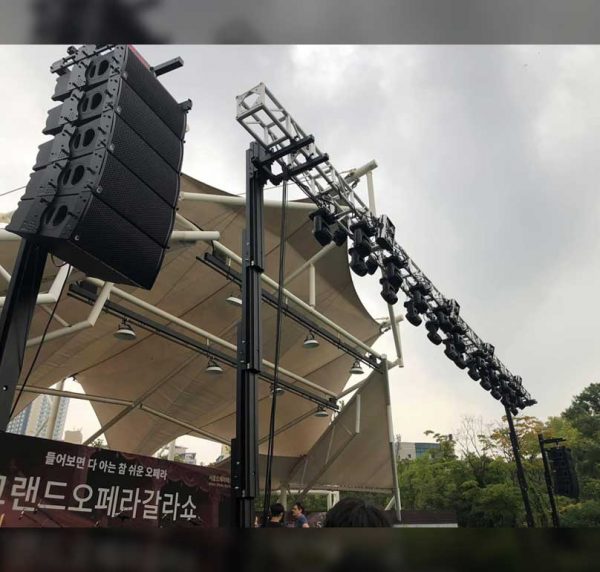

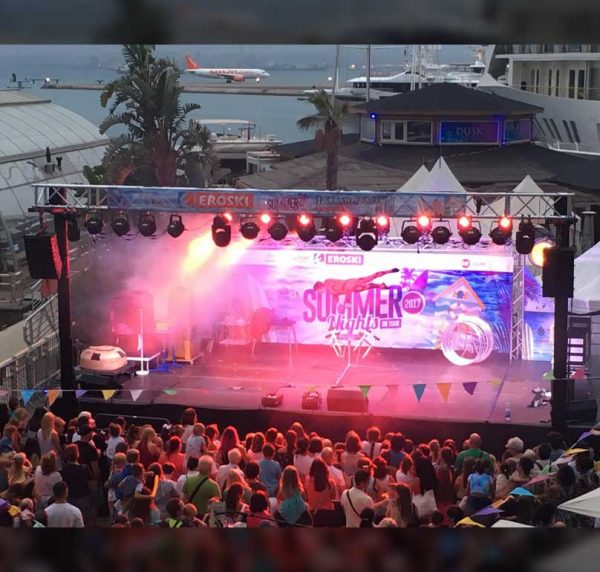

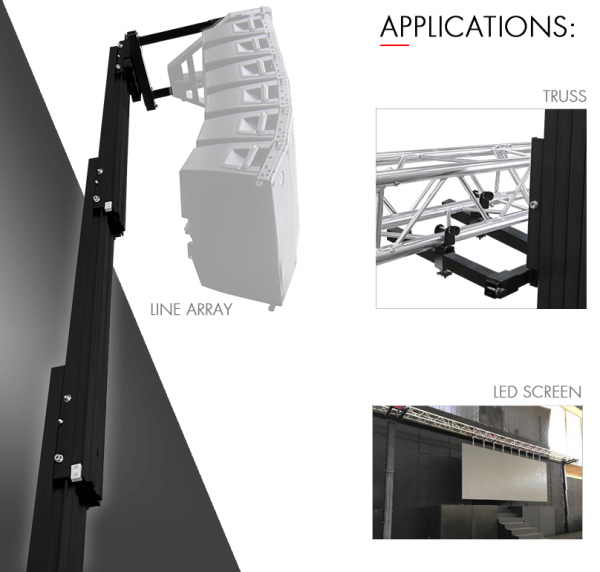

Lifting towers developed for loading heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.
SPECIFICATIONS:

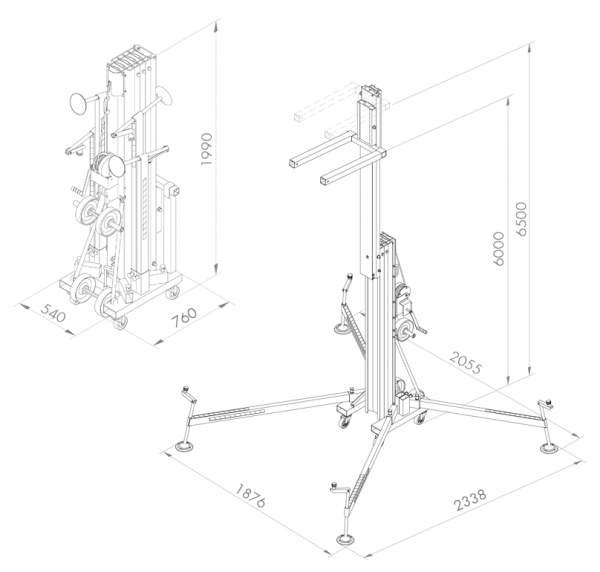

Maximum Height: 6.5 m
Maximum Load: 400 kg
Safety Systems: ASB System (Automatic Safety Blocking System), IPB System (Internal Pendulum Brake) + MSU System
Brake Winch: BULL500 – With two handles

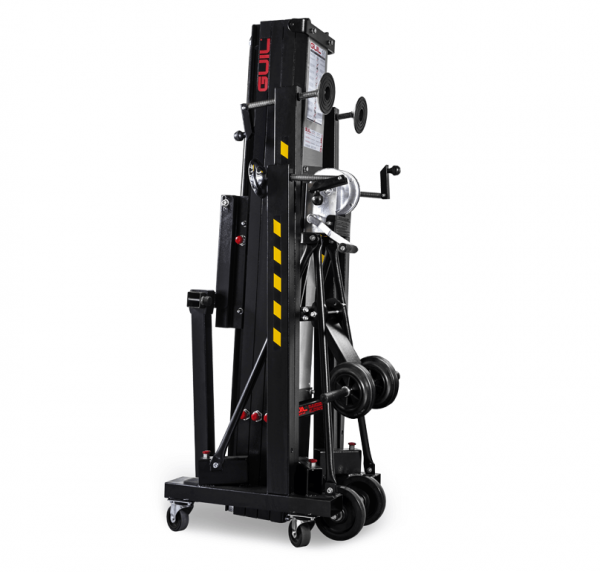

Height stowed: 1.99 m

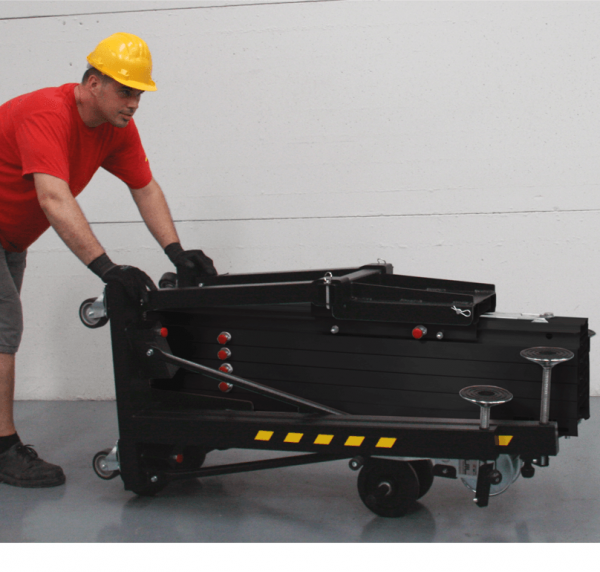

Horizontal Transport: Included (4 x Ø 150 mm wheels, 2 of them with 3 positions)
Wheels: Secured to the base with 4 fixing points
Leveller screw jacks: Trapezoidal thread TR24x5. Greater durability and speed
Material: Aluminium (alloy EN AW 6082-T6) & Steel. BLACK Colour
Complies with Standards: DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1), DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE
Net Weight: 202 kg
Sections: 4 Sections– Profile dimension (width): 208 mm
