Lifting tower – Front Loading (For Line Array & Truss)
Maximum Height: 5.00 m / Maximum Load: 380 kg



CIJENA NA UPIT

MPC: Izvorna cijena bila je: 2,00 €.Gotovina/Virman 1,00 Trenutna cijena je: 1,00 €.

Kategorija:
Brand:

Isporučivo za 4-5 tjedana

Opis

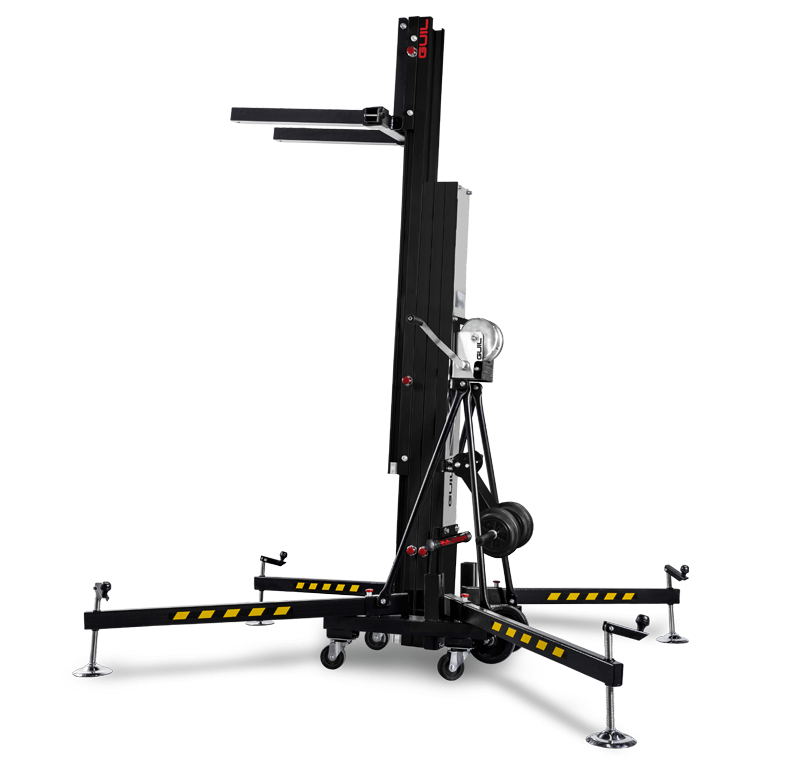

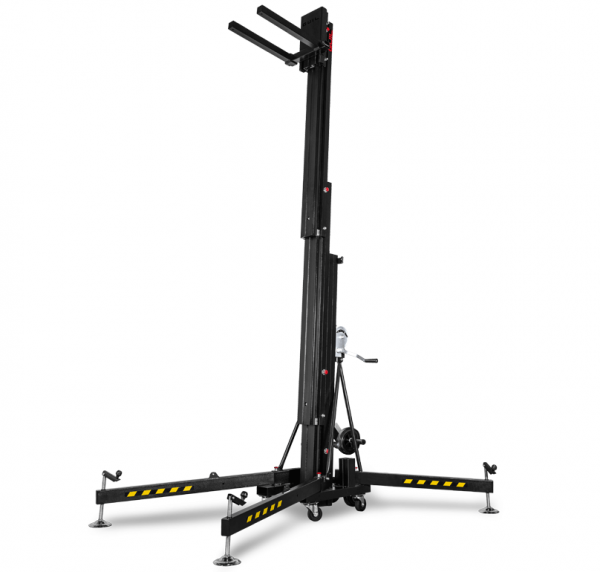

Lifting Tower designed to lift loads of up to 380 kg up to a maximum height of 5 m.
Lifting towers developed for loading heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.

SPECIFICATIONS:

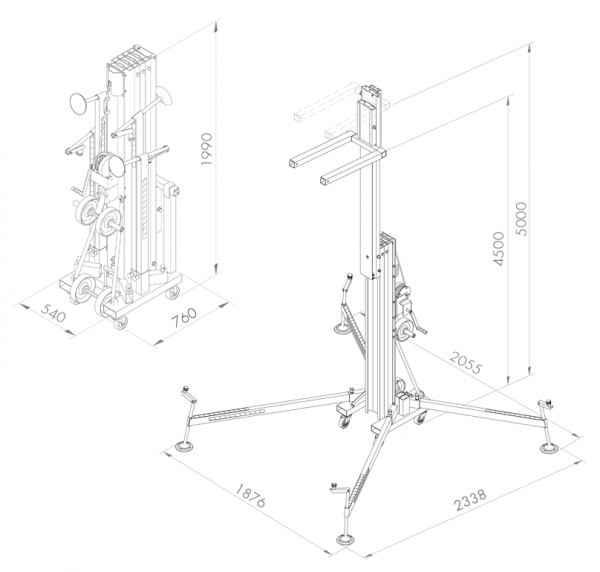

Maximum Height: 5 m
Maximum Load: 380 kg
Safety Systems: ASB System (Automatic Safety Blocking System), IPB System (Internal Pendulum Brake) + MSU System
Brake Winch: AL-KO OPTIMA 901 (900 kg)
Height stowed: 1.98 m
Horizontal Transport: Included (4 x Ø 150 mm wheels, 2 of them with 3 positions)
Wheels: Secured to the base with 4 fixing points
Leveller screw jacks: Trapezoidal thread TR24x5. Greater durability and speed
Material: Aluminium (alloy EN AW 6082-T6) & Steel. BLACK Colour
Complies with Standards: DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1), DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE
Net Weight: 173 kg
Sections: 3 Sections – Profile dimension (width): 181 mm
