Opis
Mono Channels:

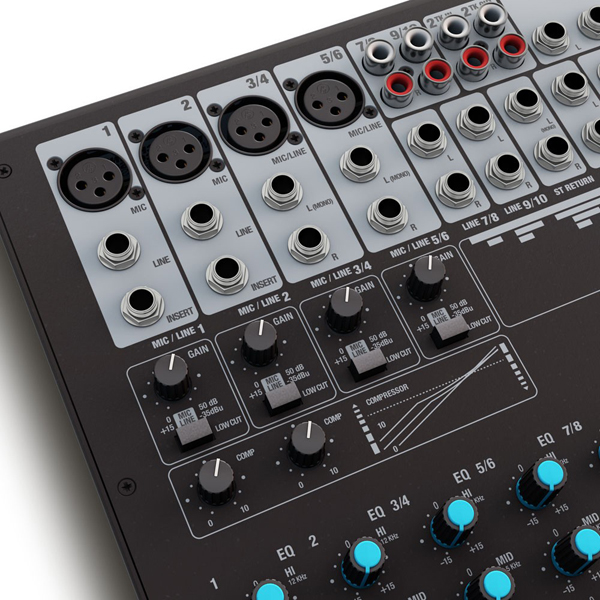

Mono Mic and Line Input Channels: 4
Mono Mic input connectors: XLR, 6.3 mm TRS
Channel Inserts: 2
Channel Insert Connectors: 6.3 mm TRS
Mono Mic Input Type: electronically balanced
Mono Mic Input Frequency Range: 10 – 45000 Hz
Amplification Range mono Mic Input: 0 – 50 dB
Mono Mic Input Input THD-N: 0.0058%
Mono Mic Input Impedance: 4 kOhms
Mono Mic Input S/N Ratio: 113 dB
Mono Line Input Type: electronically balanced
Mono Line Input Frequency Range: 10 – 45000 Hz
Amplification Range mono Line Input: 0 – 50 dB
Mono Line Input Input THD-N: 0.0045 %
Mono Line Input Impedance: 21 kOhms
Mono Line Input S/N Ratio: 11 6dB
Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid: +/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels: pan, AUX (DFX) Post, 3-band EQ (High, Mid, Low), Channel Volume, Low Cut (75 Hz), Gain, Compressor
Phantom power: 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels: 4
Stereo Line Input Connectors: 6.3 mm TRS
Stereo Line Input Type: unbalanced, electronically balanced
Stereo Line Input Frequency Range: 10 – 45000 Hz
Amplification Range stereo Line Input: 0 – 50 dB
Stereo Line Input Input THD-N: 0.0045 %
Stereo Line Input Impedance: 3,7 kOhms
Stereo Line Input S/N Ratio: 116 dB
Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz
Stereo channel equalizer mids: +/- 15 dB @ 2500 Hz
Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels: 3-band EQ (High, Mid, Low), Balance, Gain, Low Cut, Channel Volume, 2-band EQ, (High,Low), AUX Post
Main Section:
AUX / Effects Send Channels: 1
AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connectors: 6.3 mm TRS
Stereo Tape Out Channel: 1 x stereo
Stereo Tape Out Connectors: 2 x RCA (Cinch)
Stereo Tape In Channel: 1 x stereo
Stereo Tape In Connenctors: 2 x RCA (Cinch)
Unbalanced stereo Main Outputs: 1
Unbalanced stereo Main Output Connections: 6.3 mm TRS
Unbalanced Stereo Main Out Impedance: 120 Ohms
Max. Unbalanced Stereo Main Out Level: 20 dBu
Stereo Control Room Out: 1
Stereo Control Room Out Connectors: 6.3 mm TRS
Headphones ouput: 1
Headphones outputs: 6.3 mm TRS
Digital Effects Processor: no

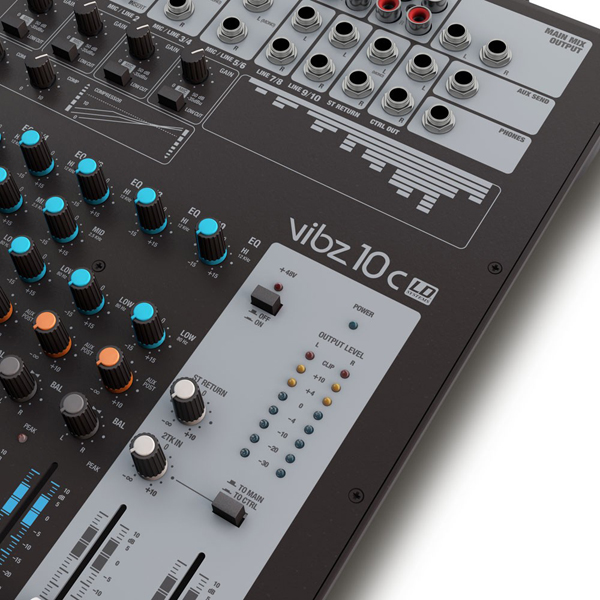

Main section controls: Phantom Power, Phones / Control Room Volume, Stereo Return Volume, 2-track In Volume, Master Volume, 2-track Assignment (Main, Contr. Room)
Indicators: Phantom Power, Power

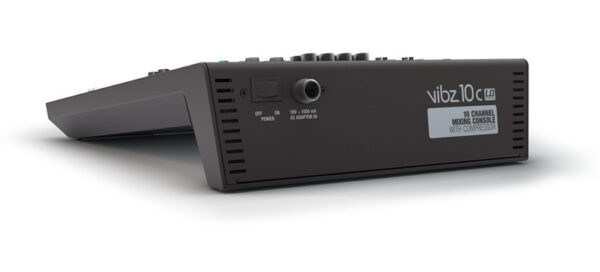

Operating voltage: 18 V AC – 1 A, External PSU
Width: 265 mm
Height: 78 mm
Depth: 352 mm
Weight: 2,3 kg
