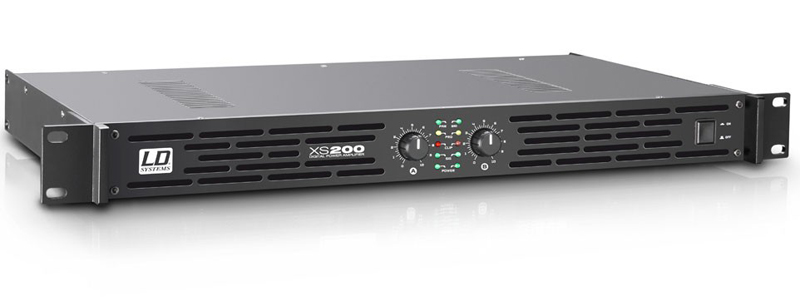

LD SYSTEMS XS 200

Opis

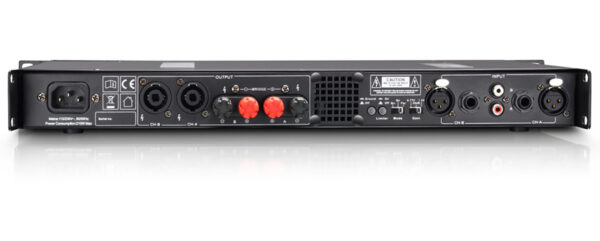

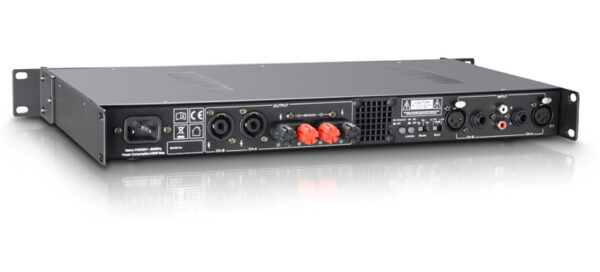

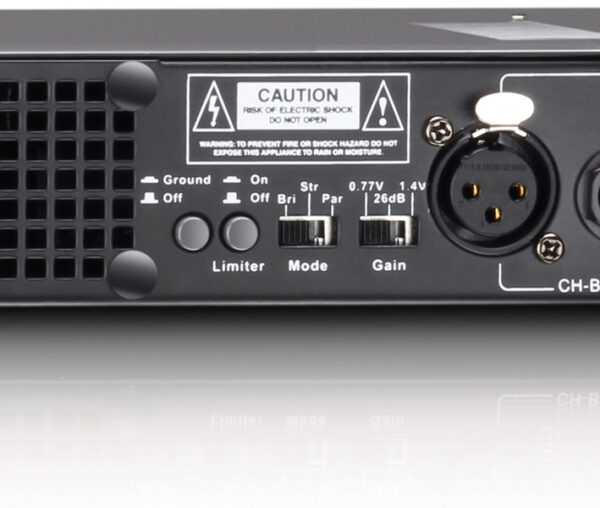

XS200 is protected against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. Slide switches on the rear panel let you select the mode of operation and gain and activate the limiter and the ground-lift function for eliminating ground loop hum. LEDs indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS200 impresses with its high dynamics, impulse fidelity, and transparent sound.

Specifications:
Rated ouput power (1kHz @ 4 Ohms): 2 x 100 W
Rated ouput power (1kHz @ 8 Ohms): 2 x 50 W
Rated ouput power (1kHz @ 8 Ohms, bridged): 200 W
Output circuitry: Class D
Frequency response: 20 – 20000 Hz
THD: < 0.1 %
Gain: 30 dB / 26 dB / 24 dB dB
Input sensitivity: 0.77 V / 1.1 V / 1.4 V (passed) V
Protection circuits: DC, over-current, short circuit, soft start, thermal overload
Controls: Gain, ground lift, limiter, mode, On / Off, volume
Indicators: clip, mode, Power, Protect (protection circuit engaged), Signal
Line inputs: 2
Line input connectors: 6.3 mm jack , RCA
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible, Terminal posts
Operating voltage: Switching power supply
Power consumption @ full load: 240 W
Operating voltage: 115 V AC / 230 V AC (switchable)
Width: 482 mm
Height: 44 mm
Depth: 244 mm
Weight: 3 kg
