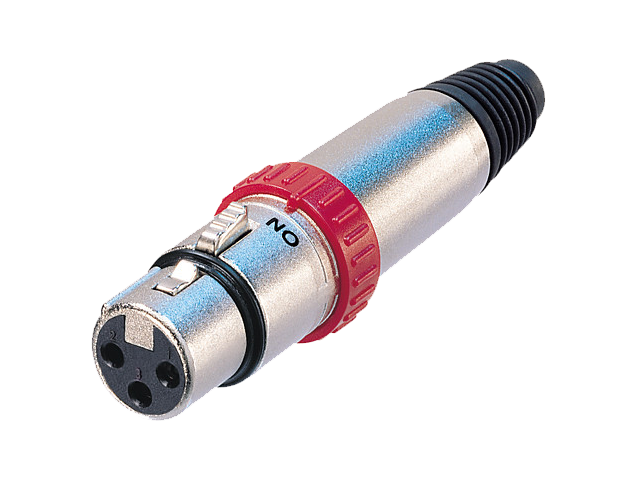

Neutrik NC3FXS

Opis

TECHNICAL DATA
Electrical:
Number of contacts: 3
Contact resistance: = 3 mΩ
Insulation resistance – initial: > 2 GΩ
– after damp heat test: > 1 GΩ
Dielectric strength: 1500 V dc

Mechanical:
Lifetime: >1000 cycles
Insertion / withdrawal force: = 20 N
Cable O.D. range: 3.5 mm – 8.0 mm
Materials:
Shell: ZnAI4Cu1, gal Ni or black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: – female (3 pole): CuSn6 & male: CuZn39Pb3
Contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
Latch lock: St3K32 (latch) / CK 67 (spring)
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental:
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
