Features & Benefits:
Combined XLR receptacle and 1/4″ phone jack
Balanced or line inputs in one XLR shell
Saves rack space by combining 2 connectors in one housing
Very low conductor capacitance, therefore suitable for digital audio
Technical specifications:

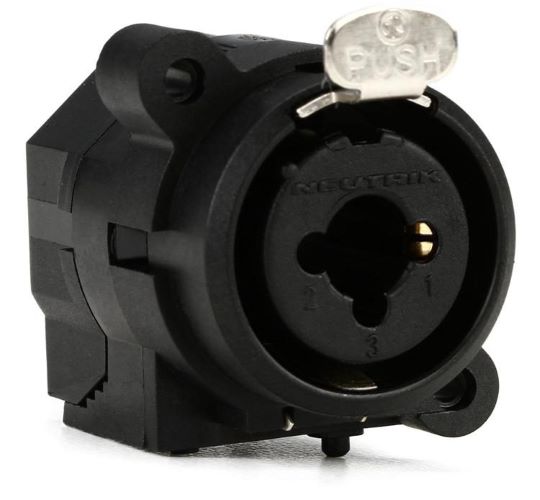

Title: NCJ6FI-S
Connection Type: Combo
Gender: female
Electrical:
Contact resistance: < 10 mΩ (XLR)
Contact resistance: < 20 mΩ (jack) Dielectric strength: 1,5 kVdc Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 7,5 A (XLR)
Rated current per contact: 7,5 A (Jack)
Rated voltage: < 50 V Mechanical : Insertion force: ≤ 25 N Withdrawal force: ≤ 25 N Lifetime: > 1000 mating cycles
Panel thickness: max. 7 mm
Mounting direction: Rear mounting
Material:
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Environmental:
Temperature range: -30 °C to +80 °C
