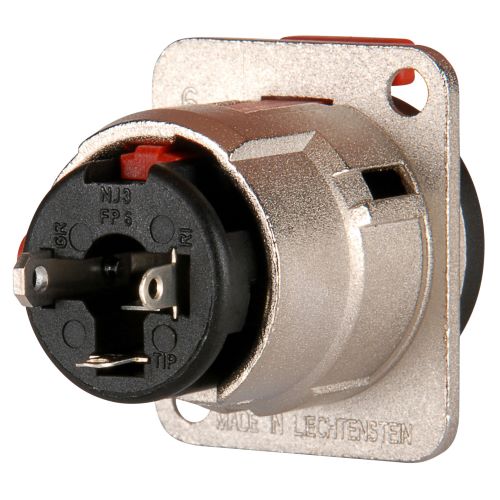

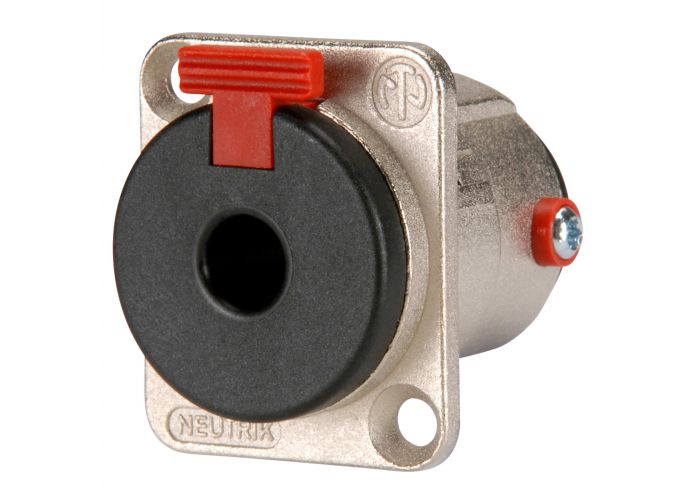

Locking 1/4″ phone jack, D-size shell, nickel metal housing and silver contacts The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
MPC: Izvorna cijena bila je: 9,60 €.Gotovina/Virman 8,50 €Trenutna cijena je: 8,50 €.
Features & Benefits:
Securely locking chassis jack
Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
Dimensionally compatible with D Series (31 x 26 mm)
Solder terminals
TECHNICAL SPECIFICATIONS:
Product:
Title: NJ3FP6C
Connection Type: Jack
Gender: female
Electrical:
Contact resistance: < 6 mΩ (initial)
Dielectric strength: 1 kVdc
Insulation resistance: ≥ 1 GΩ @ 500 V dc
Rated current per contact: 10 A
Mechanical :
Insertion force: < 30 N
Withdrawal force: < 20 N Lifetime: > 10000 mating cycles
Locking force: > 80 N
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts
Locking device: Latch lock
Mounting direction: Front mounting
Chassis shape: D
Material:
Contact plating: 2 µm Ag
Contacts: Brass (CuZn37) (Ground)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Environmental:
Standard compliance: EIA RS 453, IEC 60603-11
Solderability: Complies with IEC 68-2-20
Temperature range: -25 °C to +70 °C
