Technical Information:
Product:

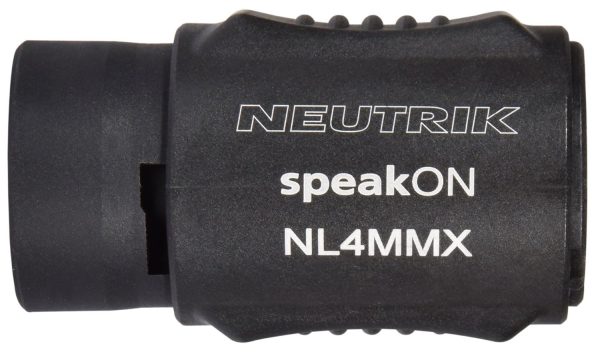

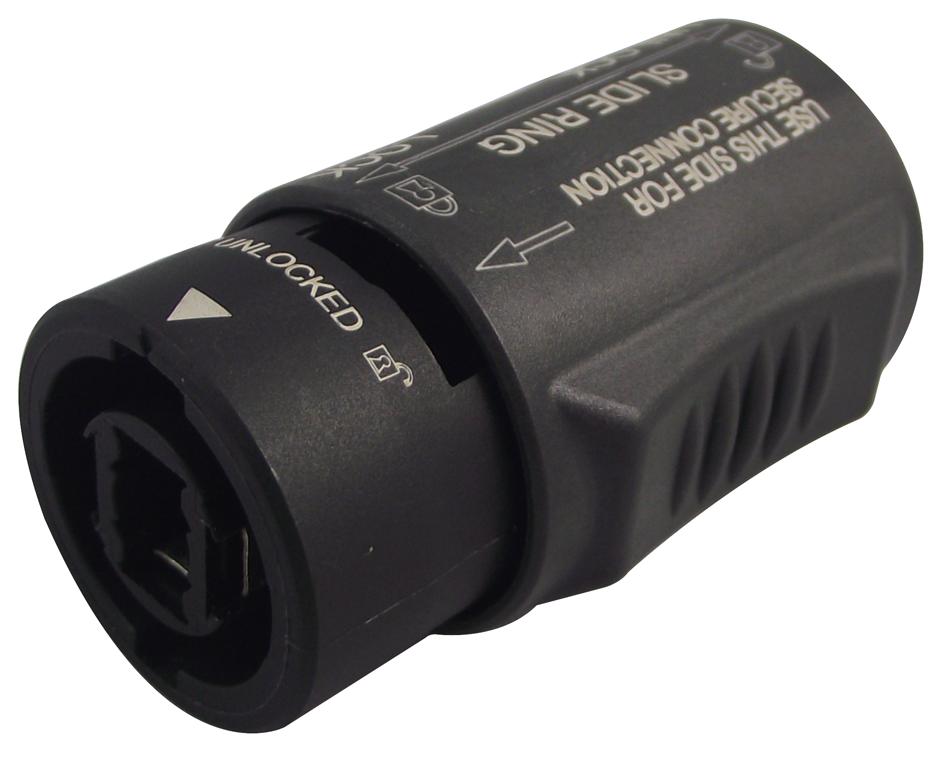

Title: NL4MMX
Gender: male
Electrical:
Contact resistance: ≤ 3 mΩ (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GΩ (after dampheat)
Rated current per contact: 15 A rms continuous
Rated current per contact: 30 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical:
Lifetime: > 5000 mating cycles
Locking device: Quick Lock
Material:
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6 30 % GR)
Shell: Polyamide (PA 6 30 % GR)
Environmental:
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
