Opis

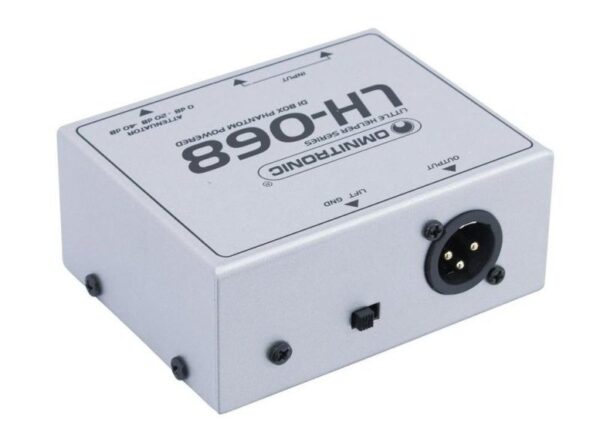

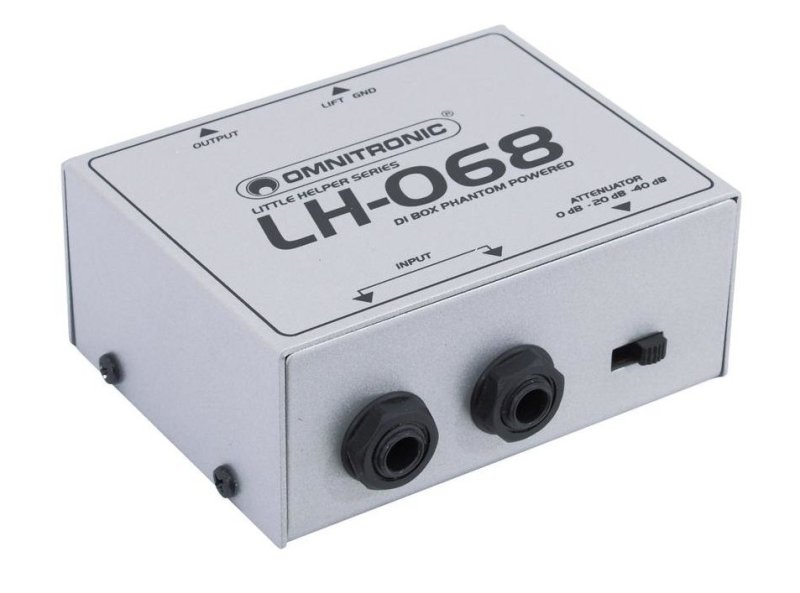

1-channel DI box, phantom powered, active
Phantom-powered DI box
1 high-impedance signal input, 6.3 mm jack
1 low-impedance XLR output
1 instrument feed-through output, 6.3 mm jack
Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Ground-lift switch eliminates signal interference and ground loop problems
Requires +48 V phantom power for operation
Rugged gray metal housing
TECHNICAL SPECIFICATIONS:
Frequency range: 1 – 50000 Hz
S/N ratio: >100 dB
Phantom power: 9-48 V DC
Connections: Input: 1 x via 6.3 mm plug (unbal.)
Output: 1 x via 3-pin XLR
Link: 1 x via 6.3 mm plug (unbal.)
Dimensions:
Width: 9,5 cm
Depth: 11,5 cm
Height: 4,5 cm
Weight: 350 g
