Opis
Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs with separate 5-step level controls
Master PA output (70 V and 100 V)
Output for low-impedance speakers (4-16 ohms)
MP3 player with IR remote control and LCD with blue backlight
SD card slot and USB input
Folder navigation and repeat functions (1, All)
2 rear microphone inputs (6.3 mm jack, unbal.)
1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Protection circuits with LED indication: over current, short circuit, turn-on delay
The device is cooled by cooling fan
Controlling by IR remote control
(19″) 48.3 cm rack installation 2 U
TECHNICAL SPECIFICATIONS:
Power supply: 230 V AC, 50 Hz
Power consumption: 360 W
Output power: 180 W RMS
Frequency range: 80 – 16000 Hz
S/N ratio: >75 dB Microphone, >85 dB line
THD: less than 0.5 % at 1 kHz
Power connection: Fixed Power supply cord with safety plug
Cooling: Cooling fan
Impedance: 100 V ELA; 4-16 Ohm
Control: IR remote control
Audio player: USB + SD
Zone output: 6 adjustable zones
Circuitry: Class AB
Controls: Current limiting; short-circuit; power on/off transient
Equalizer: Master: 1 x 2-band tone control mono
Status LED: Power, fault, level meter

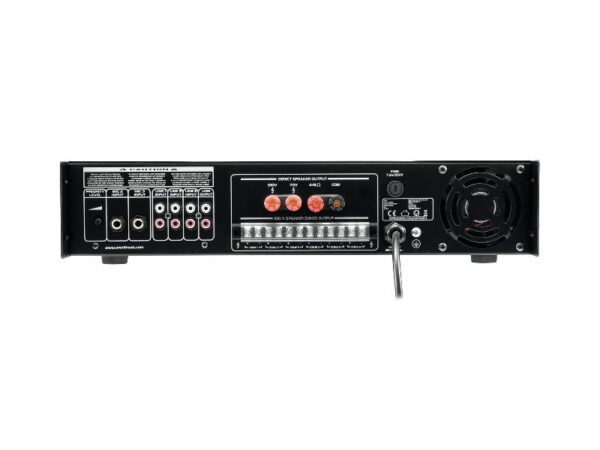

Connections:
Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 2 x Microphone via 6.3 mm plug (unbal.)
Input: 3 x line via stereo RCA 0.3 V
Output: 1 x line via stereo RCA
Output: speakers via screw terminal
Format: MP3
Number of files: Max. 999
Available storage media: USB devices/SD cards max. 32GB (FAT 32)
Housing design: (19″) 48.3 cm rack installation 2 U
Dimension:
Width: 48.3 cm
Depth: 38.5 cm
Height: 8.9 cm
Weight: 10.30 kg
Remote control:
Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
