Omnitronic UHF-204

Opis

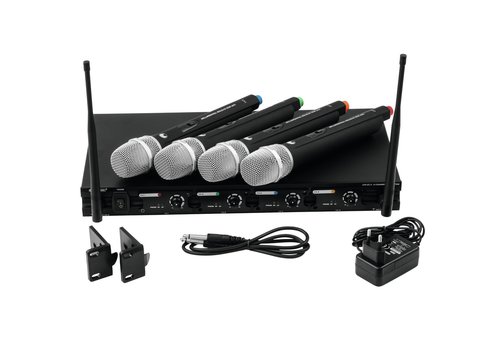

4-channel receiver unit and 4 hand-held microphones with UHF PLL technology
Operation in the low-interference UHF band (863-865 MHz) with 4 fixed frequencies

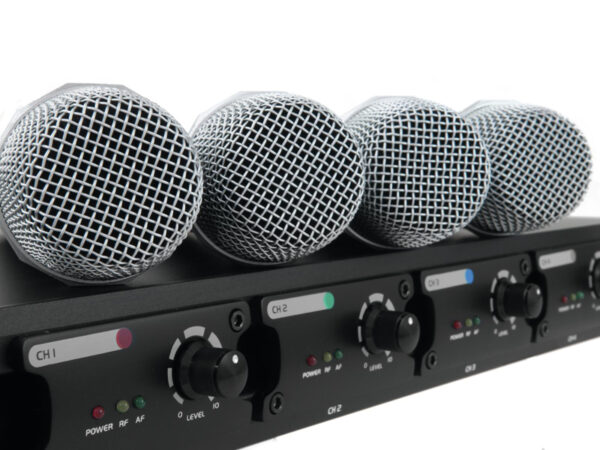

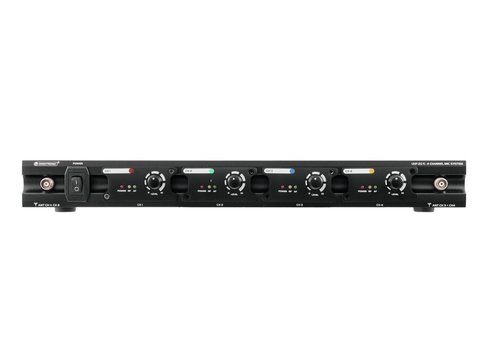

4 separate channels with volume controls and LEDs for power supply, carrier signal and audio signal

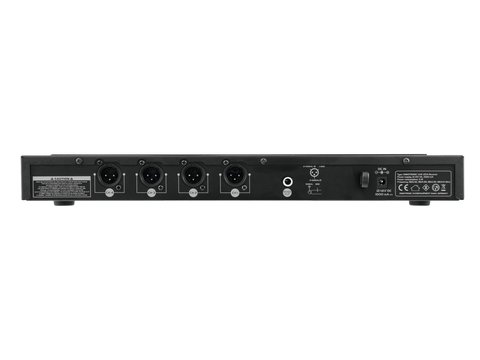

Balanced XLR output per channel
6.3 mm jack for mixed signal output
Jack cable included

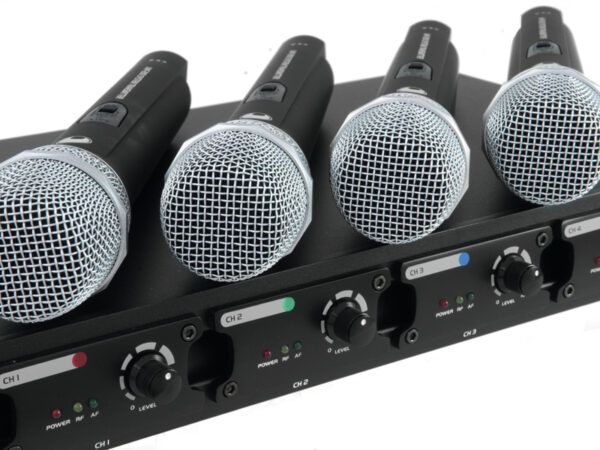

Microphones with mute switch and color caps for distinction on stage
Matching pocket transmitters can be ordered separately

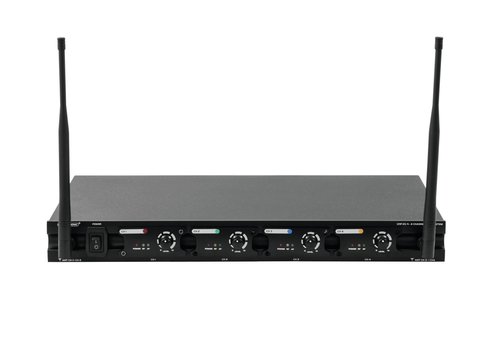

Removable antennas (TNC connection)
Receiver unit in a rugged metal housing
Incl. mounting brackets for 483 mm rack installation
License-free and approved in the EU

System: Diversity, 4 channels
Carrier frequency: 863.010 MHz, 863.420 MHz, 864.300 MHz, 864.990 MHz
Coverage: 50 m (with line-of-sight)
RF power output: 10 mW
Modulation method: F3F
Frequency range: 40-18000 Hz
S/N ratio: >105 dB
Selectivity: >80 dB
T.H.D.: less than 0.5 % at 1 kHz
Audio outputs:
Mic: 4 x XLR, bal.
Level/impedance: 400 mV, 2.2 kohms
Mic: 6.3 mm jack, unbal.
Level/impedance: 200 mV, 2.2 kohms
Power supply
Receiver: 100-240 V AC, 50/60 Hz via supplied power unit
Microphones: 2 x 1.5 V battery, type AA
Battery life approx. 10 hours
Dimensions and weight:
Receiver: 420 x 220 x 50 mm (L x W x H), 3 kg
Microphones: 50 x 265 mm (D x L), 280 g
Power consumption: 10 W
