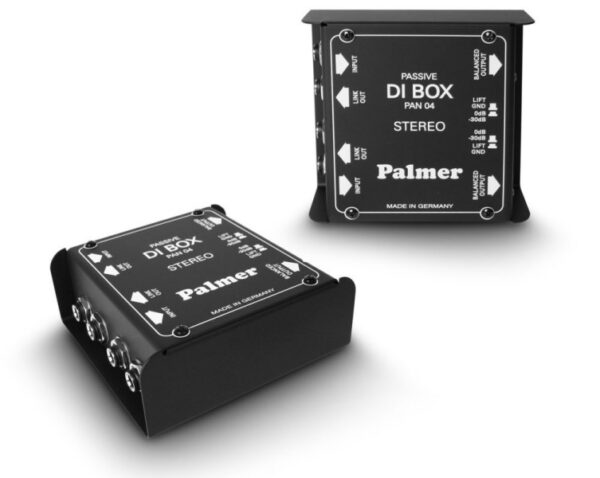

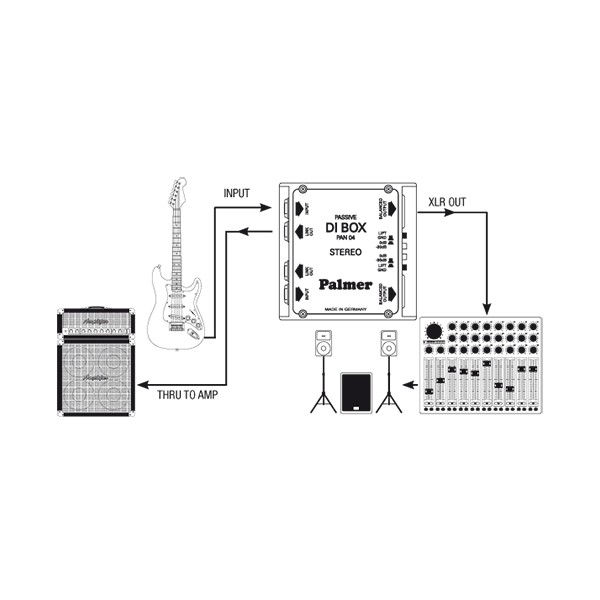

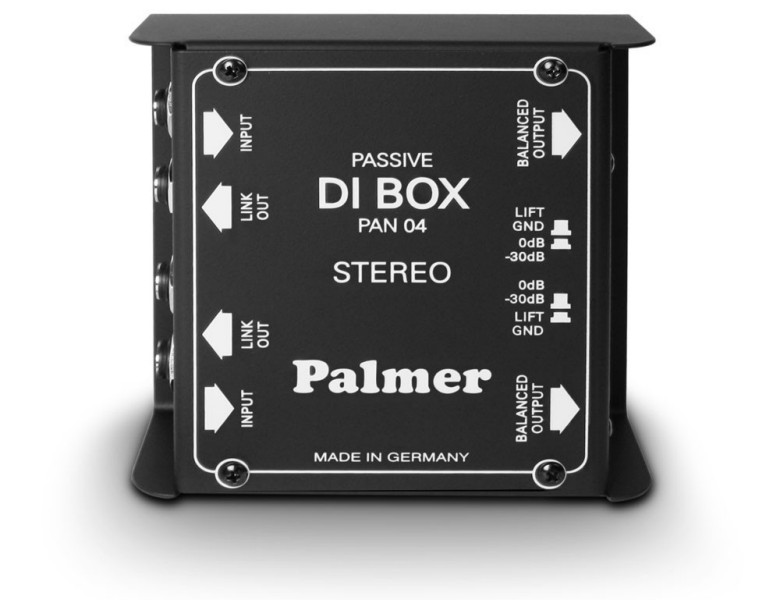

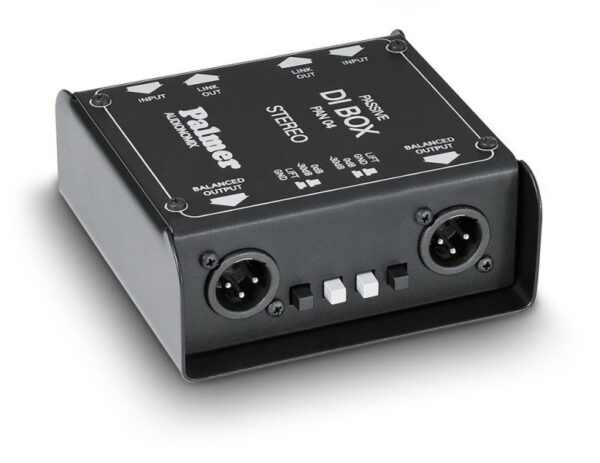

DI Box passive PAN04 consists of a housing containing the equivalent of two PAN 01s, making it a dual channel passive DI box. This „stereo” configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU” output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals

MPC: Izvorna cijena bila je: 150,00 €.Gotovina/Virman 115,00 Trenutna cijena je: 115,00 €.

Kategorija: ,
Brand:

Dostupno odmah

Opis

SPECIFICATIONS:
Product type: DI Boxes
Type: passive
Channels: 2
Inputs: 2
Input connectors: 6.3 mm jack
Max. input level: + 54 dBu
Input impedance: 60 kOhm
Input pad: 0 / -30 dB
Outputs: 2
THRU outputs/channel: 1
Output connectors: 6.3 mm jack , XLR
Max. output level: + 4 dBu
Output impedance: 600 Ohm
Frequency response: 10 – 40.000 Hz
Transformer balanced: Yes
Ratio: 10 : 1
Controls: attenuation, ground lift
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 110 mm
Depth: 110 mm
Height: 45 mm
Weight: 0,419 kg
