Procab PMI224

PMI224
PMI224

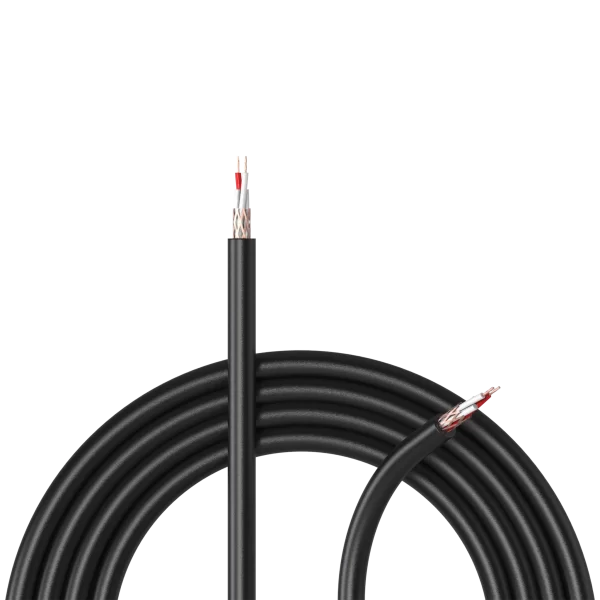

PMI224-rolled

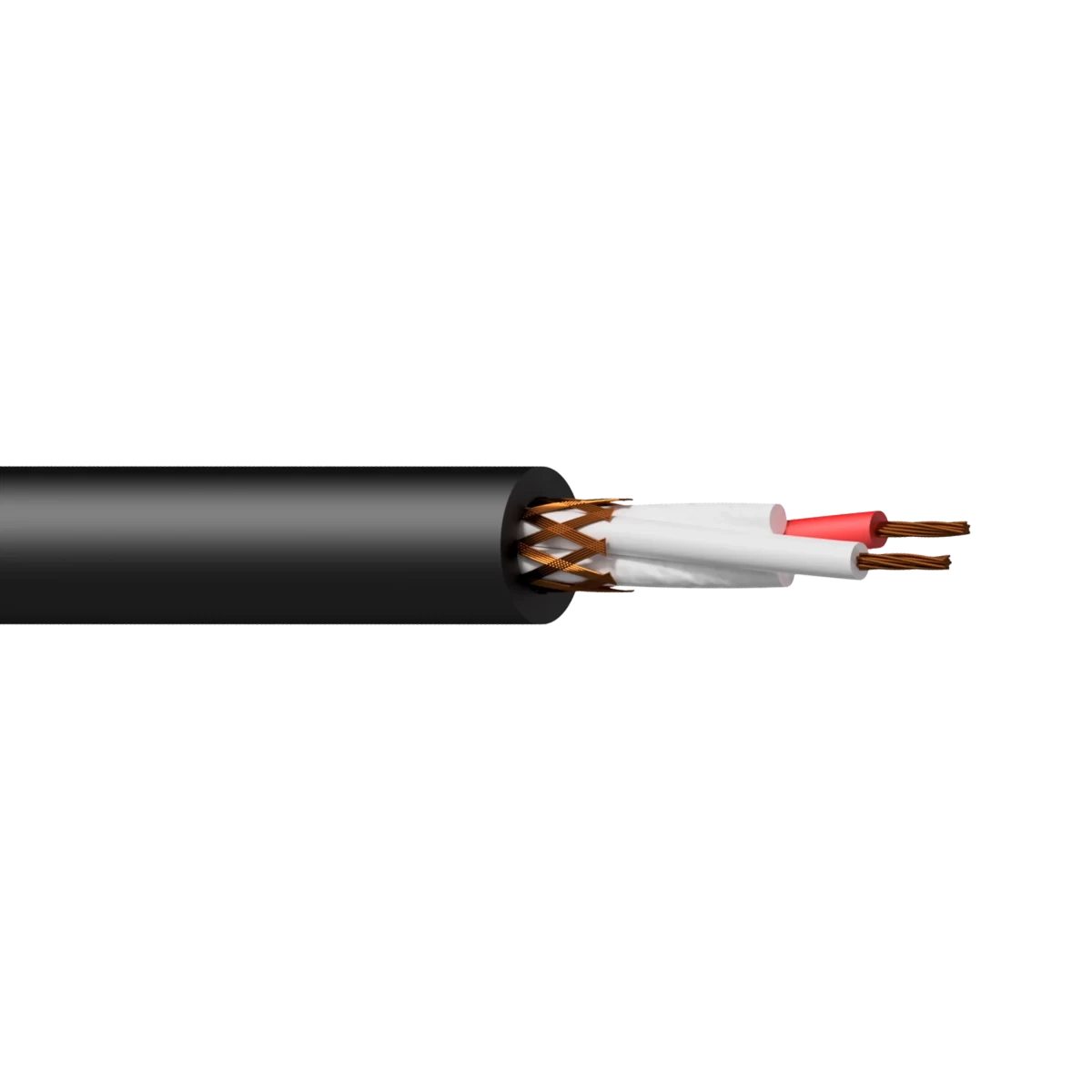

PMI224 is a high-quality microphone cable with a highly flexible outer jacket. This cable is made rigid, which allows you to roll it up, even at longer lengths effortlessly. Two 24 AWG (0.22 mm²) conductors consisting of 12 copper strands with 0.15 mm thickness are surrounded by an 80-strand braided copper shielding with superior coverage

  • Made in EU

MPC: Izvorna cijena bila je: 1,80 €.Gotovina/Virman 1,60 Trenutna cijena je: 1,60 €.

Brand:

Isporučivo za 2-3 tjedna

Opis

Combined with the thick and soft PVC outer jacket, this provides a flexible but solid feel while allowing it to withstand an extreme amount of bending cycles. Optimal signal transmission is guaranteed due to the low capacitance and use of high-purity copper, while the high-coverage shielding provides excellent immunity against interference. These features make the PMI224 perfect for use in professional stage & studio applications.



Product Features:
Application: Rental & MI
Series: Bulk & Accessories

Physical Characteristics:
Inner conductor: Insulation Material: PE 1.5 mm (Ø); Colours: White / Red; Shielding Braiding: BC 16 x 5 x 0.10 mm (Ø) (OFC)
Outer jacket: Material: Highflex PVC 6.2 mm (Ø); Colour: Black
Type of cable: 24 AWG Microphone cable
Inner conductor: Material: BC 12 x 0.15 mm (Ø) (OFC); Section 0.22 mm²
Filling: Cotton Yarn
Inner conductor: Number of conductors: 2; Conductor twisting: Yes

Mechanical Characteristics:
Temperature range:
Fixed installation: – 20 °C till + 70 °C
Mobile installation: – 5 °C till + 70 °C
Bending radius:
Fixed installation: 5 x outer diameter
Mobile installation: 10 x outer diameter
