Procab SIG58

Procab SIG58

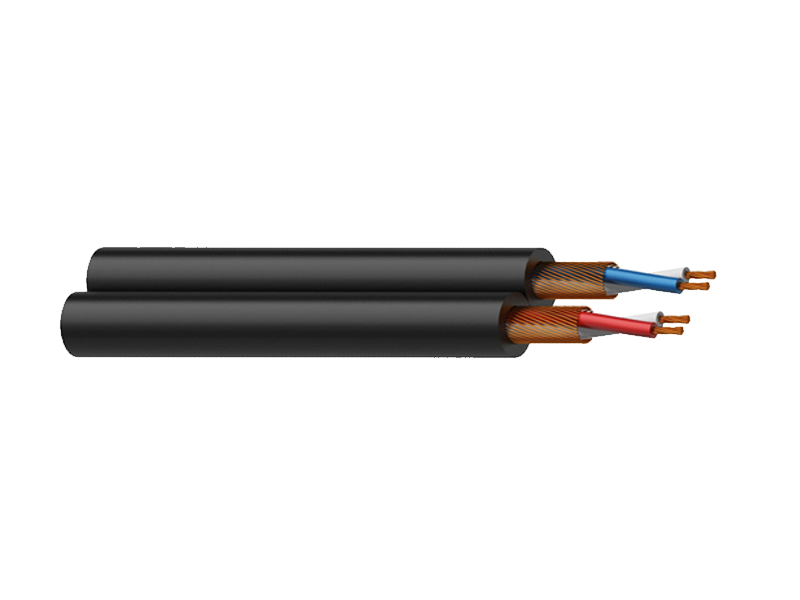

Signal Cable – Cote a Cote – Balanced – 4mm x 8mm

MPC: Izvorna cijena bila je: 1,80 €.Gotovina/Virman 1,60 Trenutna cijena je: 1,60 €.

Kategorija:
Brand:

Dostupno odmah

Opis

The SIG series cables are high quality signal cables for indoor, fixed or mobile applications.
They have a PVC jacket and are very easy to handle. The inner conductors are fitted with a durable shielding.This gives an excellent protection against interference of all kinds such as electromagnetic fields produced by dimmers, electric motors or power cables.
The SIG series cables are “all-round” signal cables which are suited for all kinds of applications where reliable signal transmission is needed.
General Specifications:
Type of cable: Balanced stereo signal cable
Inner conductor: 2 x BC 14 x 0,12 mm
Inner conductor section: 0,16 mm²
Isolation: LDPE Ø 1,0 mm
Isolation colour: Red / White, Blue / White
Number of conductors: 2 x 2
Conductor twisting: Yes
Shielding: BC 32 x 0,12 mm – Spiral
Shielding %: 100%
Filling: None
Separator: None
Outer jacket: Flexible PVC
Outer jacket colour: Black
Outer jacket dimensions: 4 x 8 mm
Printing colour: White
Printing text: Procab SIG58
Lead resistance – 100 meter: 10,6 Ohm
Cable crosstalk – 100 meter: Min 73,3 dB
Cap. Lead to lead – meter @ 1 kHz: 54 pF
Cap. Lead to shielding – meter @ 1 kHz: 98 pF
American Wire Gauge (AWG): 25
