Rean NYS 204

Rean NYS 204

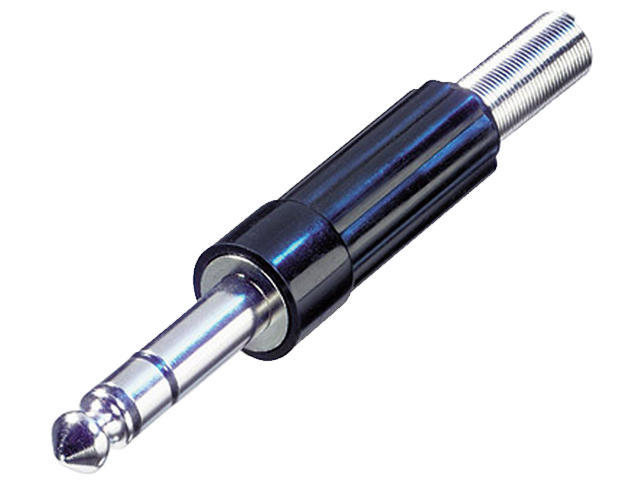

3 pole 1/4” plug, plastic handle with flexible strain relief

MPC: Izvorna cijena bila je: 1,50 €.Gotovina/Virman 1,20 Trenutna cijena je: 1,20 €.

Kategorija:
Brand:

Dostupno odmah

Opis

Title: NYS204
Connection Type: Plug
Gender: male
Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Contact resistance: depends on mating connector
Rated current: depends on mating connector
Mechanical
Cable O.D.: ≤ 6 mm
Lifetime: 1000 mating cycles
Wiresize: 24 AWG
Material
Bushing: Steel sp.
Contact plating: 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: ABS
Insulation: Thermoplastic
Strain relief: Crimp type SnCe plated
Environmental
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +70 °C
