Technical Information:
Product:

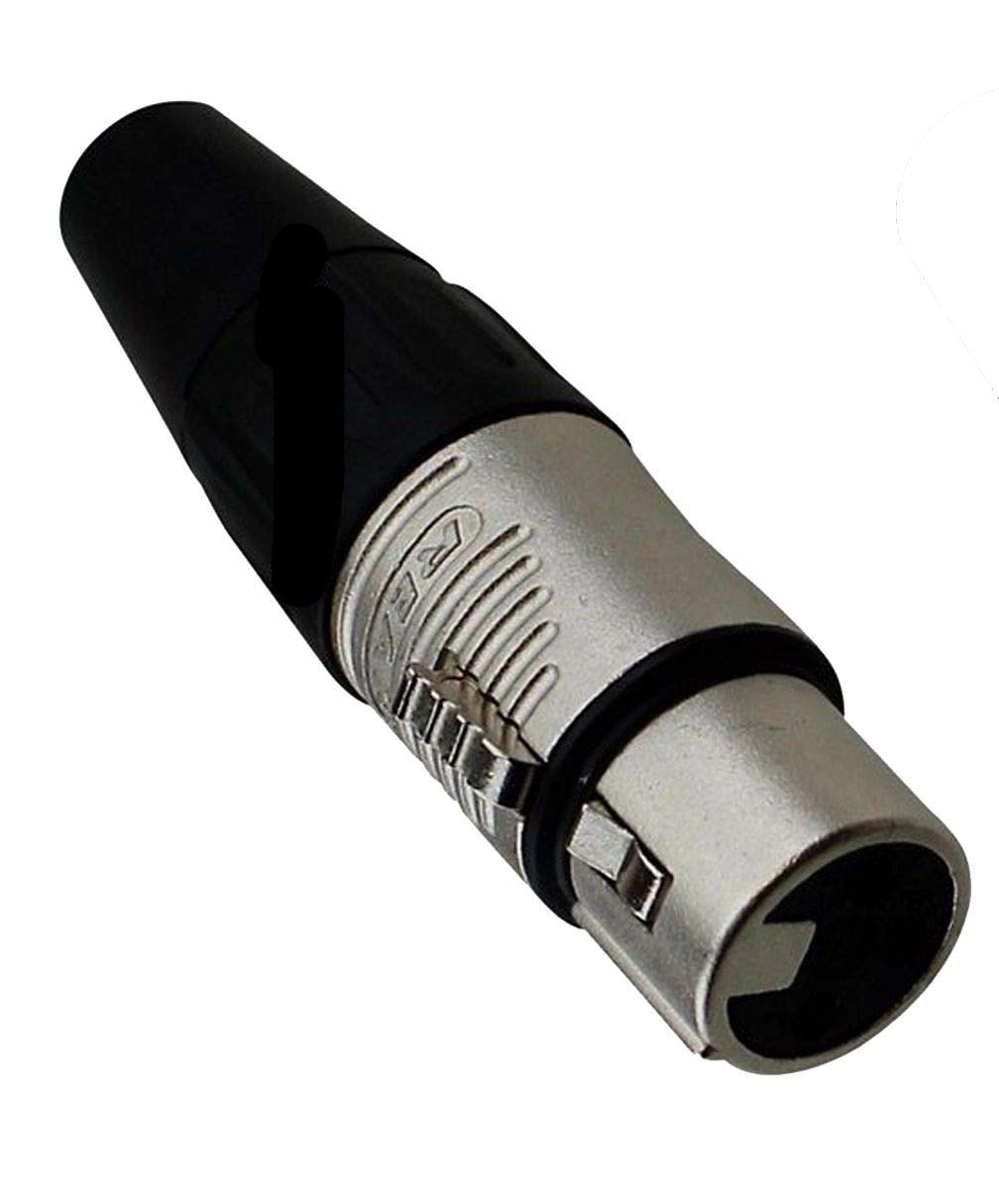

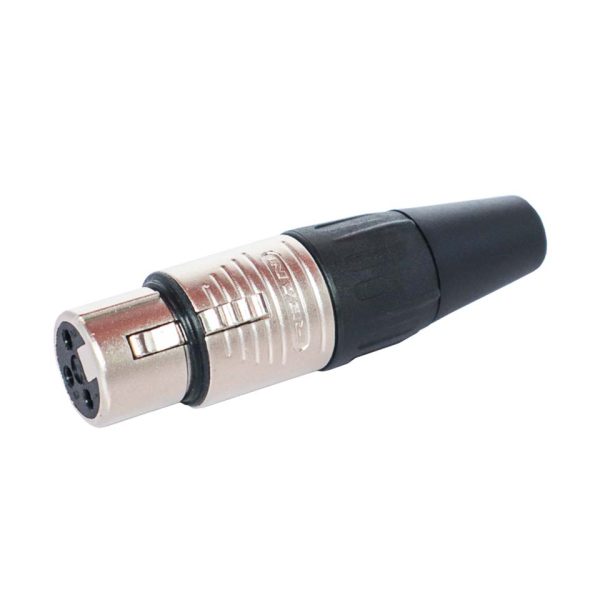

Title: RC3F
Connection Type: XLR
Gender: female
Electrical:
Insulation Resistance: > 1.5 GΩ
Contact Resistance: ≤ 5 mΩ
Rated Current: 10 A
Mechanical:
Lifetime: >1000 Mating Cycles
Insertion Force: ≤ 30 N
Withdrawal Force: ≤ 20 N
Cable O.D.: 4 – 7 mm
Wiresize: 1.5 mm²
Wiresize: 16 AWG
Material:
Plastic Body: PA6+30%GF UL94-HB
Jack: Bronze
Ground Contact: Steel
Rubber Ring: Rubber
Button: Zinc
Housing: Zinc
Chuck: POM
Push Ring: POM
Bushing: PA6+30%GF
Boot: PVC
Jack: Sliver Plating
Ground Contact: Tin and Cer
Button: Nickel Plating
Housing: Nickel Plating
