Technical Information:
Product:

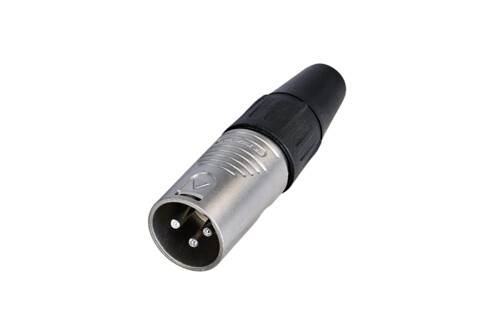

Title: RC3M
Connection Type: XLR
Gender: male
Electrical:
Insulation Resistance: > 1.5 GΩ
Contact Resistance: ≤ 5 mΩ
Rated Current: 10 A
Mechanical:
Lifetime: >1000 Mating Cycles
Insertion Force: ≤ 30 N
Withdrawal Force: ≤ 20 N
Cable O.D.: 4 – 7 mm
Wiresize: 1.5 mm²
Wiresize: 16 AWG
Material:
Pin: Brass
Male Insert: PA6+30%GF UL94-HB
Ground Contact: Bronze
Housing: Zinc
Chuck: POM
Push Ring: POM
Bushing: PA6+30%GF
Boot: PVC
Pin: Sliver Plating
Ground Contact: Tin and Cer
Housing Nickel: Plating
