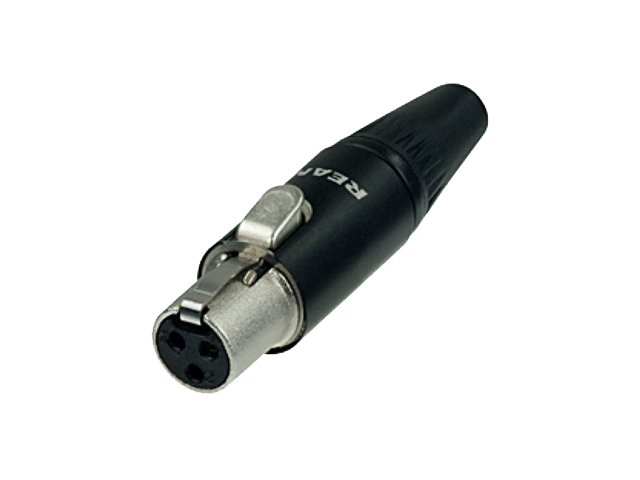

Title: RT3FC-B
Gender: female
Electrical
Contact resistance: < 5 mΩ (inner) Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GΩ
Rated current per contact: < 5 A Mechanical Cable O.D.: 2.0 – 4.5 mm Lifetime: > 1000 mating cycles
Wiresize: 0.22 mm²
Wiresize: 24 AWG
Wiring: Solder contacts
Material
Bushing: ABS
Contact plating: Au
Insert: PA 6.6 30 % GF
Shell plating: Black
Strain relief: PVC
Environmental
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +85 °C
