Opis

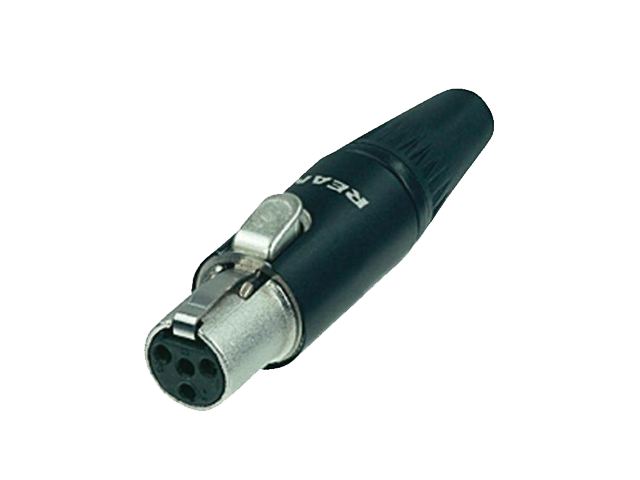

Title: RT4FC-B
Electrical
Contact resistance: < 5 mΩ (inner) Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GΩ
Rated current per contact: < 5 A Mechanical Cable O.D.: 2.0 – 4.5 mm Lifetime: > 1000 mating cycles
Wiresize: 0.22 mm²
Wiresize: 24 AWG
Material
Strain relief: PVC
Environmental
Temperature range: -30 °C to +85 °C
