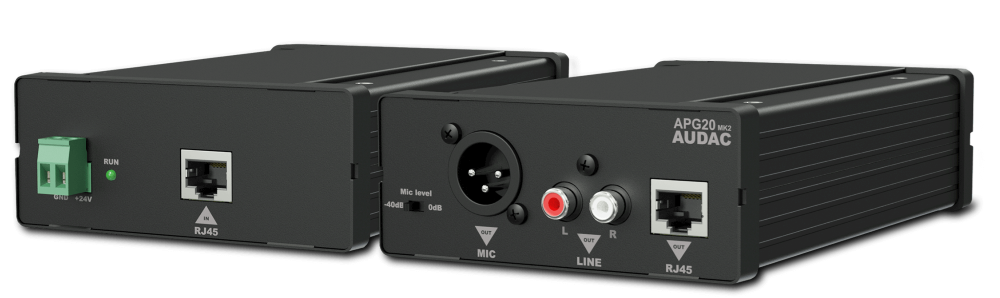

The APG20 is a receiver gateway, designed to be used in combination with the Wall Line Input (WLI) and Wall Microphone Input (WMI) flush mount wall input units. It converts the signal transmitted over UTP CAT5 cabling into signals corresponding Line and Microphone levels, and makes them available on RCA and XLR connectors (a stereo WLI signal is converted into a dual mono signal). Stereo Line output. Microphone output. RJ45 input connector. RS485 link to amplifier. Mic level 0 dB / -40 dB switch. 24 V DC power supply
CIJENA NA UPIT
MPC: Izvorna cijena bila je: 2,00 €.Gotovina/Virman 1,00 €Trenutna cijena je: 1,00 €.
The APG20 is a receiver gateway, designed to be used in combination with the Wall Line Input (WLI) and Wall Microphone Input (WMI) flush mount wall input units. It converts the signal transmitted over UTP CAT5 cabling into signals corresponding Line and Microphone levels, and makes them available on RCA and XLR connectors (a stereo WLI signal is converted into a dual mono signal). Stereo Line output.
Microphone output. RJ45 input connector. RS485 link to amplifier. Mic level 0 dB / -40 dB switch. 24 V DC power supply
The maximum distance that can be covered between the input unit and the receiver gateway is 300 m. By applying a ARJ03P junction box halfway the cabling, which provides the required power supply for the input units, the maximum distance can be extended to 600 meters.
Audac PSD242 24V DC Power supply or compatible required.
The APG20 is also available as a set sold with a PSD242 24V DC Power supply, coverplates and wall panels.
SYSTEM SPECIFICATIONS:
Power supply: 24 V DC
Digital control: RS485
PRODUCT FEATURES:
Dimensions (Width x Height x Depht): 108 x 44 x 165 mm
Weight net: 760 g
Construction: Aluminium
Connector:
Input: RJ45 / Screw clamp (24V DC)
Output: RJ45 / RCA / XLR
Colour: Black
