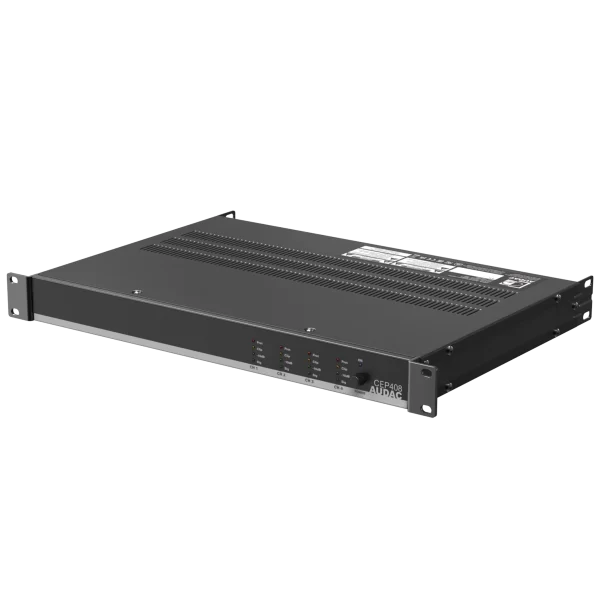

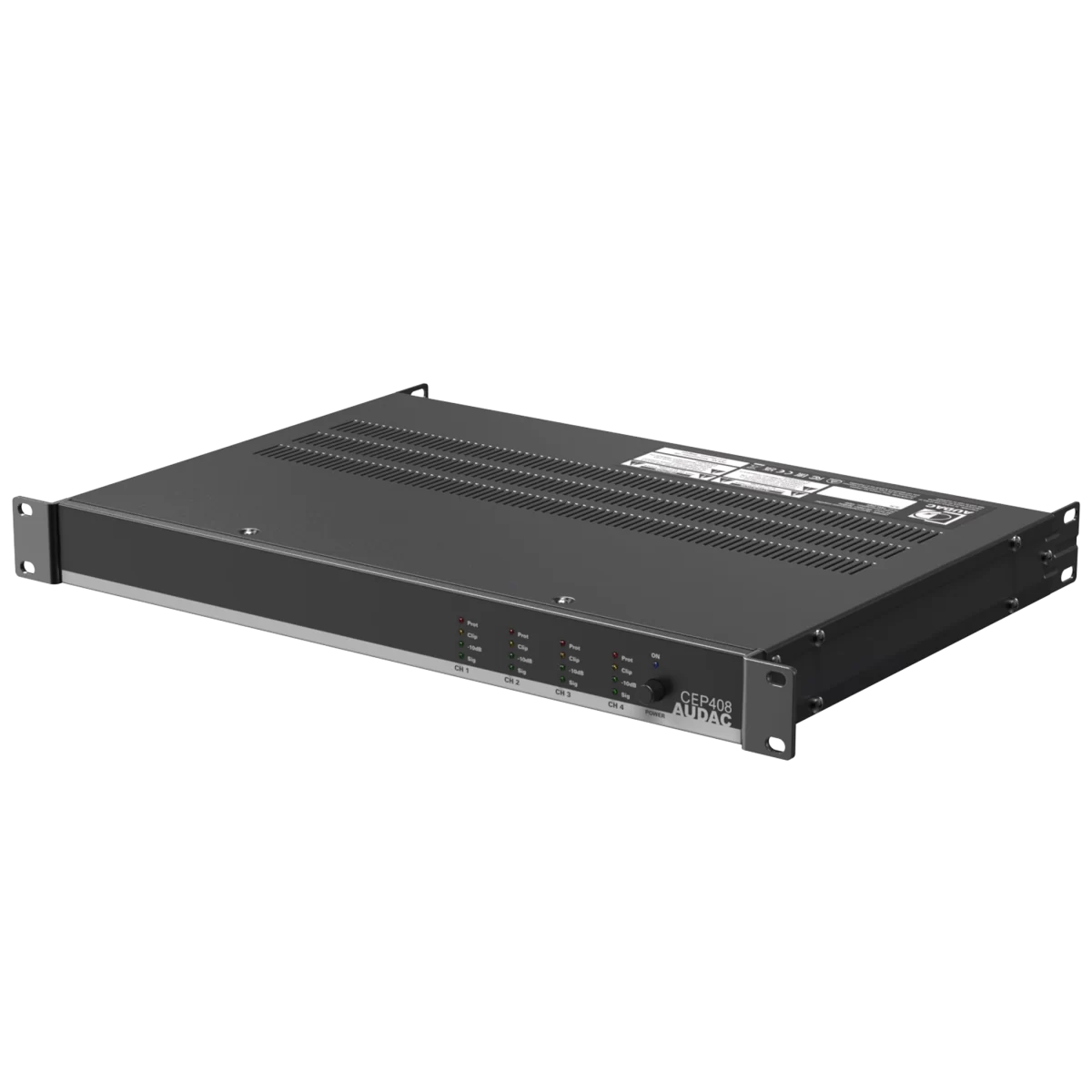

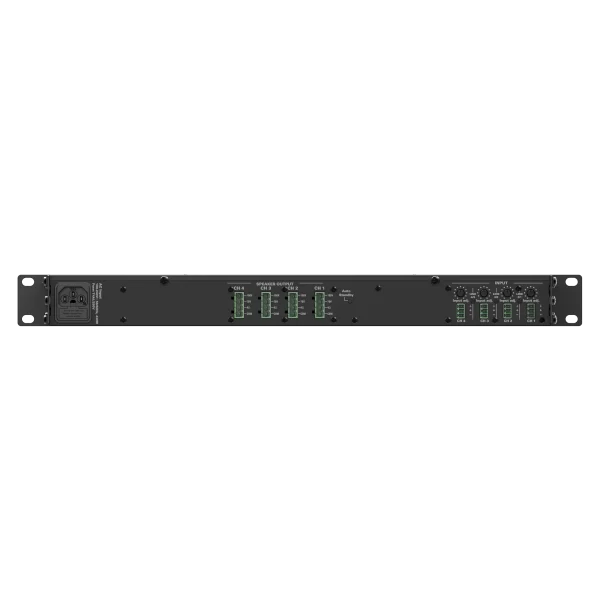

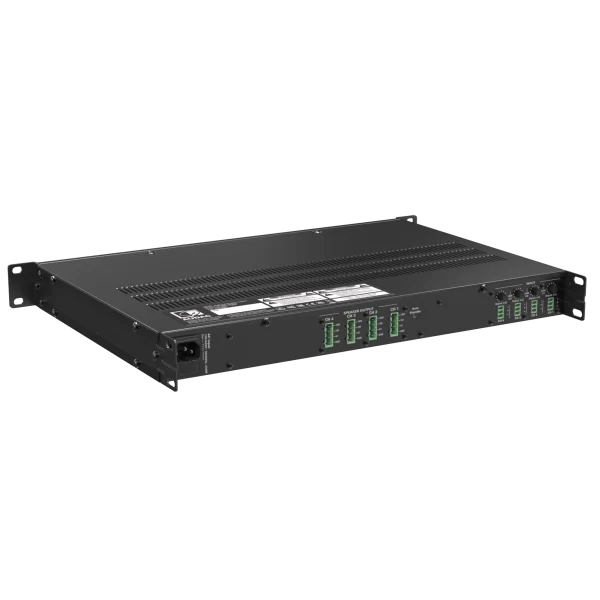

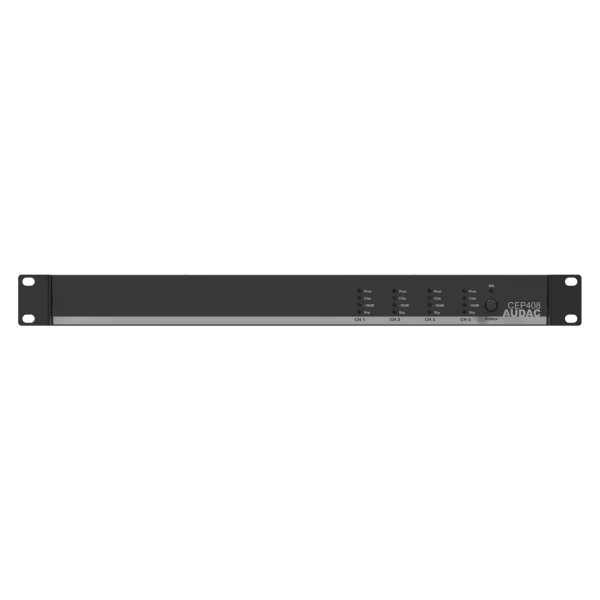

Audac CEP408

Opis

RMS/AES power handling:
4 x 80 W
@ 70 V 4 x 80 W
@ 100 V 4 x 80 W
Outputs Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Inputs Connector: 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Power Supply: 100 ~ 240V AC mains operation voltage
Signal / Noise: > 100 dB
THD+N (@ 1 kHz): < 0.05% (1/8 rated Power)
Crosstalk (@ 1 kHz): < 70 dB
Technology: Class-D
Protection: DC Short circuit, Over heating, Over load, Signal limiting
Cooling: Convection cooled
Operating temperature: 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB): 110 Hz – 20 kHz
Power Supply: Switching mode, Source: 100 ~ 240 V AC / 50 ~ 60 Hz
Consumption:
Standby 0.6 W
Idle: 16.4 W
Nominal (1/3 MUP): 196 W
Nominal (1/8 MUP): 92 W
Inputs:
Sensitivity: -0.5 dB ~ 10.5 dB
Impedance: 10 kΩ balanced
Connector: 3-pin Euro Terminal Block (Pitch – 3.81 mm), IEC C14 Connector, Input linking through miniature switches
Outputs Voltage / Impedance:
4 Ω
70 V / 62.5 Ω
100 V / 125 Ω

Product Features:
Mounting: 19”
Unit height: 1 HE
Colours: Black
Dimensions: 482 x 44 x 355 mm (W x H x D)
Weight: 6.3 kg
Construction: Steel
