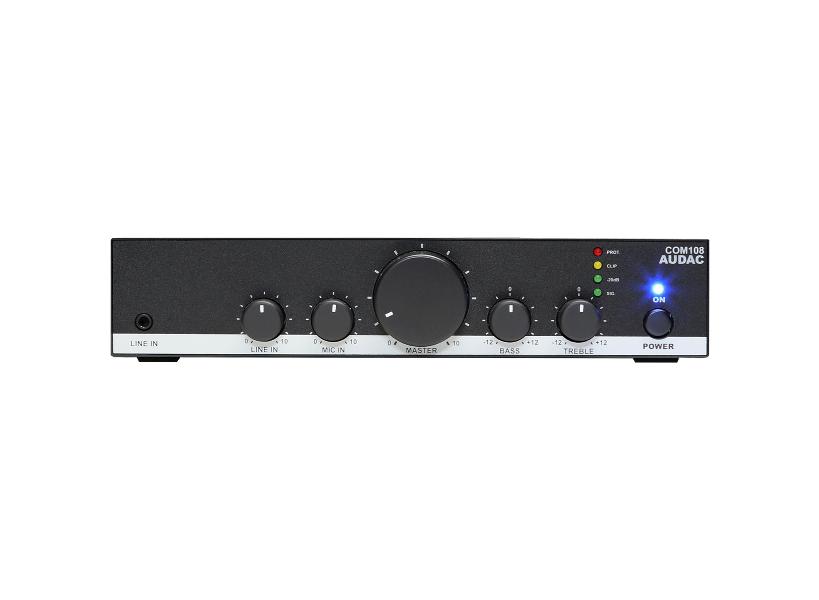

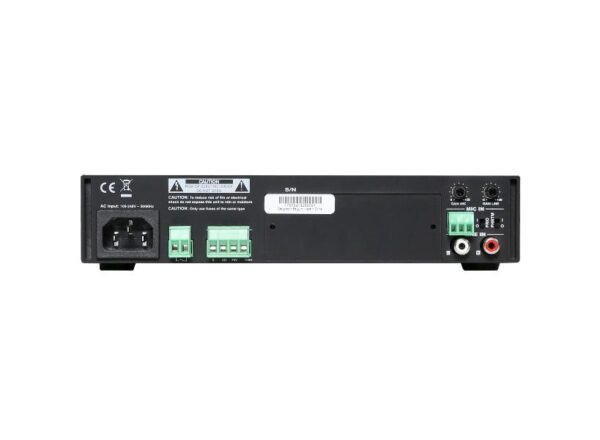

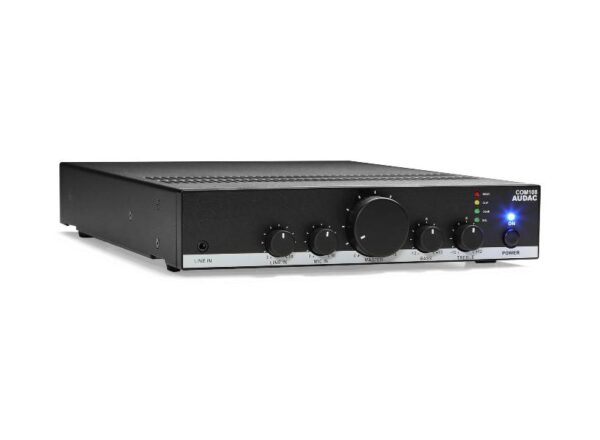

Audac COM108

Opis

The amplifier is designed using Class-D amplifier technology and delivers an output power of 80 Watt to constant voltage (100V and 70V) or low impedance (4 Ohm) audio systems. A switch mode power supply allows compatibility with a wide variation of mains voltages for global compatibility.
A stereo line input allows connection for a wide variation of audio sources such as media players, radio tuners, internet audio players, … and many more. A balanced mic / line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled, and compatibility with voice file players is guaranteed by the wide gain adjustment possibility (0 dB – +50 dB).

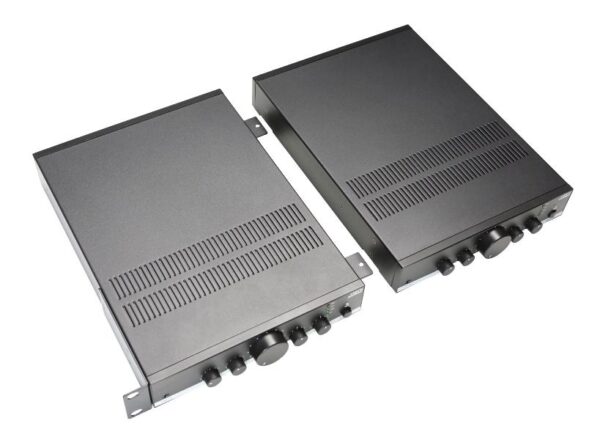

The COM108 is a table-top standing device, while rack mounting in 10.5″ or 19″ equipment racks is possible using an optionally available mounting set (MBS310).

Highlights:
unbalanced stereo line input
1 x Microphone input
Priority audio inputs with phantom power
1 x Priority mute contact
Terminal block output connections (4Ω, 70V, 100V)
Compact design
Low impedance & constant voltage output
Table top or half rackspace installation
Applications:
Bars, restaurants
Retail
Public facilities
Corporate spaces

System specifications:
Inputs:
Balanced Microphone:
Sensitivity (1W/1m): -0 dB ~ +50 dB
Connector: 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Type: 1 x Balanced Microphone
Unbalanced Stereo:
Type: 1 x Stereo Unbalanced Line
Connector: RCA / 3.5 mm Jack
Sensitivity (1W/1m): -4 dB ~ +20 dB
Frequency Response (± 3 dB): 20 Hz – 20 kHz
Signal / Noise: > 90 dB
THD+N (@ 1 kHz): < 0.5% (1/2 Rated Power) Crosstalk (@ 1 kHz): > 70 dB
Technology: Class-D
Power Supply: Switching mode
Operating: 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs: Balanced Microphone Phantom Power: 15 V DC, Priority mute contact
Outputs:
Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Voltage / Impedance: 100/ 70 V / 4 Ω
Protection: Amplifier: DC Short circuit, Over heating, Over load, Signal limiting
Cooling: Convection cooled
Operating temperature: 0° ~ 40° @ 95% Humidity
RMS Power @ 4 Ω: 1 x 80 W

Product Features:
Dimensions (W x H x D): 217.5 x 43.7 x 300 mm
Weight: 3 kg
Mounting: 1/2 19” / 1 HE or tabletop
Construction: Steel
Colour: Black
Accessories: Optional: 19″ Rackmount adapter
