Audac EPA254

Opis

This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt
power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and
mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the
complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. The quad channel
construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active
crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and
advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input

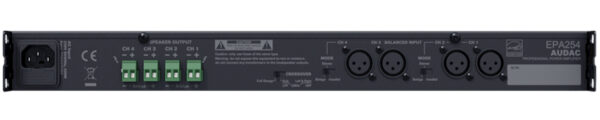

connections are integrated with balanced XLR connectors. Outputs are connected using terminal block connectors

SYSTEM SPECIFICATIONS:
Signal / Noise: > 90 dB
THD+N (@ 1 kHz): less than 0.1%
Crosstalk (@ 1 kHz): > 70 dB
Technology: Class-D
Protection: DC Short circuit, Over heating, Over load, Signal limiting
Cooling: Convection cooled
Operating temperature: 0° ~ 40° @ 95% Humidity
RMS Power:
@ 4 Ω Stereo: 4 x 250 W
@ 8 Ω Stereo: 4 x 130 W
@ 8 Ω Bridge: 2 x 500 W
Frequency Response (± 3 dB): 20 Hz – 20 kHz
Power:
Supply: Switching mode 100 ~ 240 V AC / 50 ~ 60 Hz
Consumption: 438 W
Inputs:
Sensitivity (1W/1m): 0 dB (1V RMS)
Impedance: 12 kΩ balanced
Connector: XLR female with Male Linkthrough
Outputs:
Connector: Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)
Power: Consumption Standby: 0.7 Watt (~30 sec standby time)

PRODUCT FEATURES:
Dimensions: 482 x 44 x 330 mm (W x H x D)
Weight: 4.7 kg
Mounting: 19”
Unit height: 1 HE
Construction: Steel
Colour: Black
