Audac SCP206

SCP206

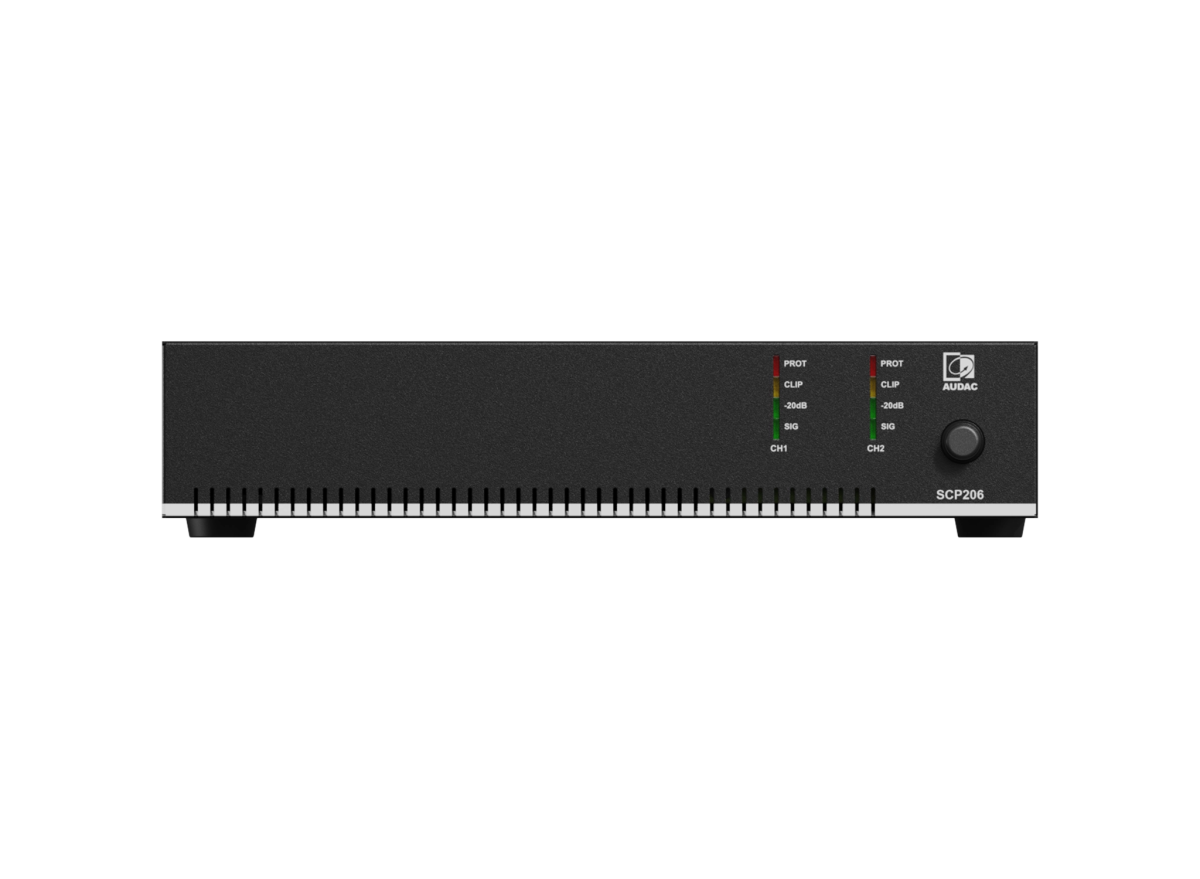

SCP206

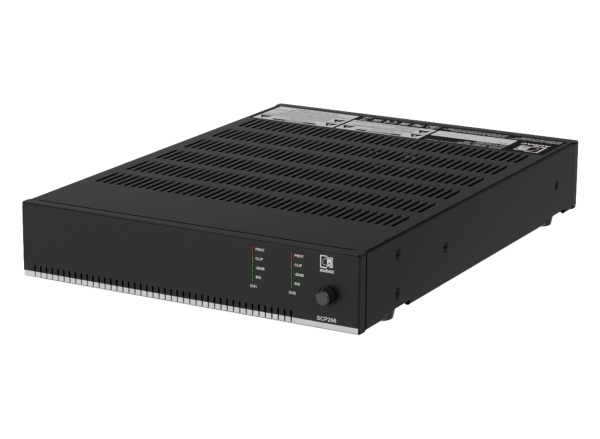

SCP206-front-corner

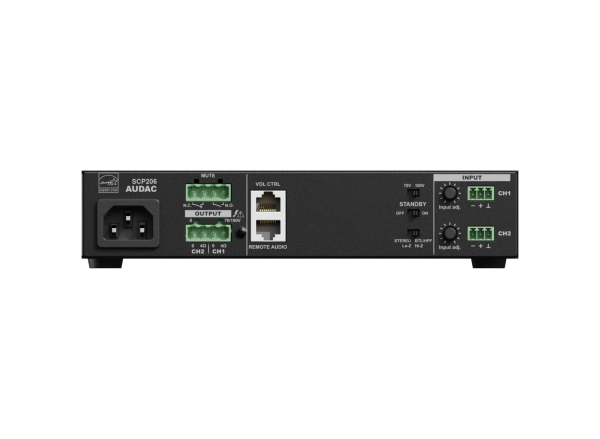

SCP206-back

Compact dual-channel power amplifier – 2 x 60W @ 4 Ohm – 120W @ 70/100V

Compact and lightweight design
Compatible with WP2xx series remote wall input panels
Energy-saving standby mode
Stereo low impedance or 70/100V bridge mode
Unique optimal cooling

CIJENA NA UPIT

MPC: Izvorna cijena bila je: 2,00 €.Gotovina/Virman 1,00 Trenutna cijena je: 1,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

System specifications:
RMS/AES power handling: @ 4 Ω Stereo 2 x 60 W, @ 8 Ω Stereo 2 x 30 W, @ 70/100 V Bridge 120 W
Frequency response (± 3 dB): 20 Hz – 20 kHz
THD+N (@ 1 kHz): <0.05%
Signal / Noise: > 95 dB
Indicators: VU LED bar (front)
Outputs Voltage / Impedance: 70-100 V / 4 Ω
Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Inputs
Connector: 3-pin Euro Terminal Block (Pitch – 3.81 mm), IEC C14 Connector
Other: Connector RJ45, Type: 1 x Remote Volume controller, 1 x Remote Wall Mixer, Stereo – BTL/HPF mode configuration, Priority mute contact
Power: Standby switch
Power supply: 100 ~ 240 V AC / 50 ~ 60 Hz
Control: Gain control potentiometers (rear), Stereo Low Z & Mono High Z switch, 70/100V switch
Cooling: Convection cooled
Technology: Class-D

Product Features:
Construction: Steel
Dimensions: 217.5 x 44 x 300 mm (W x H x D)
Mounting: 1/2 19” / 1 HE or tabletop
Weight: 2.70 kg
Accessories: Optional: 19” Rackmount adapter, WP2xx Universal wall panel
