NOVA DXI8200

Opis

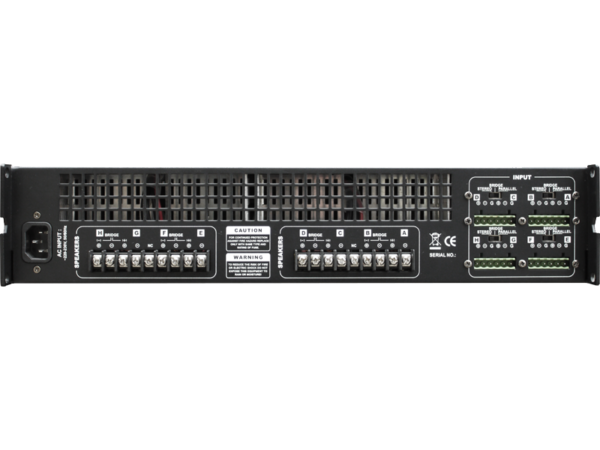

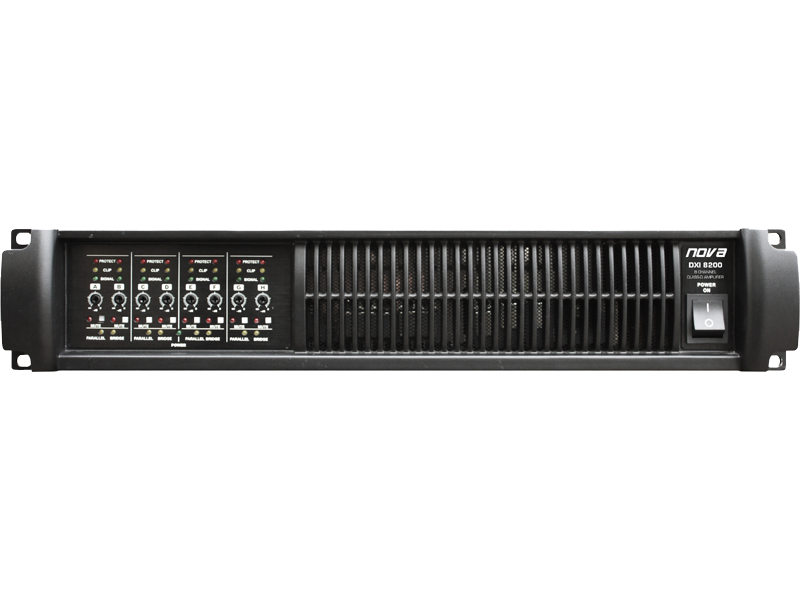

The DXI8200 is a 8-channel power amplifier at a compact size of 2 HU (rack spaces). The front panel shows 8 gain controls for easy access, 8 mute-switches and the main switch. The LED display informs about the condition of the amplifiers. The rear side shows 8 input-connectors and 8 output-connectors. The input sensivity (gain) is 32 dB each channel. The outputs offer barrier strip connectors. The DXI8200 can be used also in half-bridged mode (2 x 400 watts plus 4 x 200 watts RMS / 4 ohms). The DXI8200 can be switched into three different operation modes: stereo, parallel and bridge mode. The independent limiters can be switched on or off. All models are equipped with a switch-on delay to protect the connected speakers.

8 ohms per channel (watt): 130 (x 8)
4 ohms per channel (watt): 200 (x 8)
8 ohms bridged (watt): 400 (x 2 max. in bridge mode)
THD+N at 1 kHz half power @ 4 ohms: <0.5 %
Damping factor: 600
Channel separation at 10 kHz: <60 dB
Input Impedance: 40 k ohms bal. / 20 k ohms bal.
Common mode rejection: 70 dB
Gain controls: 8
Clip / protect indicators: LEDS
Output headroom indicators: LEDS
Input connectors: Euroblock
Link connectors: n/a
Mode switch: Stereo / brigde / parallel
Limit switch: n/a
Output connectors: Barrier Strip (connectors included)
Operation voltage: 220 – 242 volts
Soft start: Yes
Switch mode power supply (SMPS): Yes
Maximum power consumption: 1.300 W
Dimensions unit W x H x D: 483 x 89 x 431 mm
Dimensions packing W x H x D: 544 x 123 x 544
Weight (net / gross): 8 kg / 10 kg
