DYNACORD V600:2

Opis

Specifications:

ELECTRICAL:
Total rated output power: 600 W
Number of channels: 2
Rated output power: 2 x 300 W
Output power: 4 Ω / 8 Ω / 70 V / 100 V
Maximum output power per channel (power sharing): 500 W / 600 W / 500 W / 600 W

AMPLIFIER: 4 Ω / 8 Ω / 70 V / 100 V
Nominal Gain: (+6 dBu input sensitivity, LEVEL 0 dB): 27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
Signal to Noise Ratio (A‑weighted, ref. to rated output power, LEVEL 0 dB): > -100 dB / > 102 dB / > 101 dB / > 103 dB
THD+N (1/8 RATED OUTPUT POWER, 1 KHz): < 0.1 %

CONNECTIVITY:

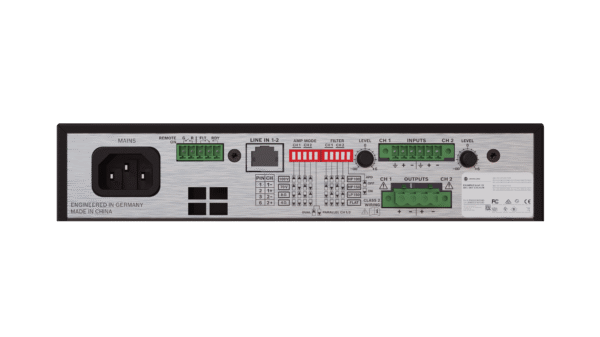

Type: 1 x 6-pin Euroblock, 3.81 mm, male, parallel 1x RJ45 (AES72-1E)
Loudspeaker output: 2 x 4-pin Euroblock, 5.08 mm, female
Control port type: 1 x 5-pin Euroblock, 3.81 mm, male

GENERAL:
Signal processing: Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
Power requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
Power consumption:
Idle mode (ecoRAIL with no input signal): < 12 W
Consumption at 1/8 rated output power: 115 W
Standby mode (APD active): < 1 W
Protections: Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
