Opis
Available Coverage Patterns (Nominal -6 dB) HxV: 60×40, 60×60, 90×40, 90×60, 90×90, 120×60°
Environmental Specs: Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Input Connections: Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Internal Passive Crossover Frequency: 1450 Hz
Frequency Response (-3 dB): 58 – 16000 Hz
Frequency Response (-10 dB): 49 – 19000 Hz
Recommended High-Pass Frequency: 65 Hz
Sensitivity 1 W/1 m: 98 dB
Max. SPL/1m (calc): 131 dB
System Power Handling (Continuous/Program/Peak): 500, 1000, 2000 Watts
LF Transducer: SMX2121 12-inch (305 mm) driver
HF Transducer: ND2B 2-inch (51 mm) diaphragm compression driver
Nominal Impedance (Passive): 8 Ω
Minimum Impedance : 6 Ω
Enclosure Material: 13-ply weather-resistant birch
Grill: Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind

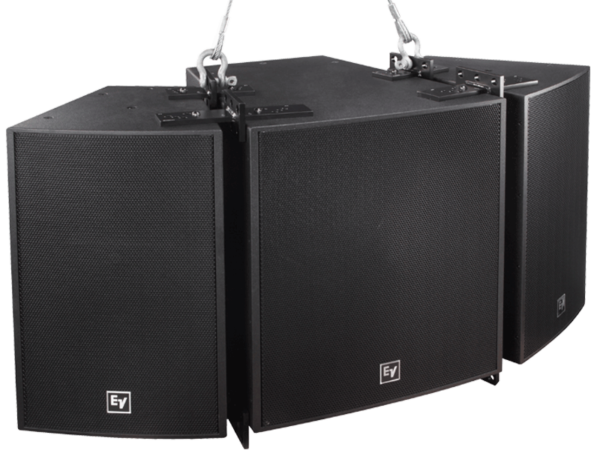

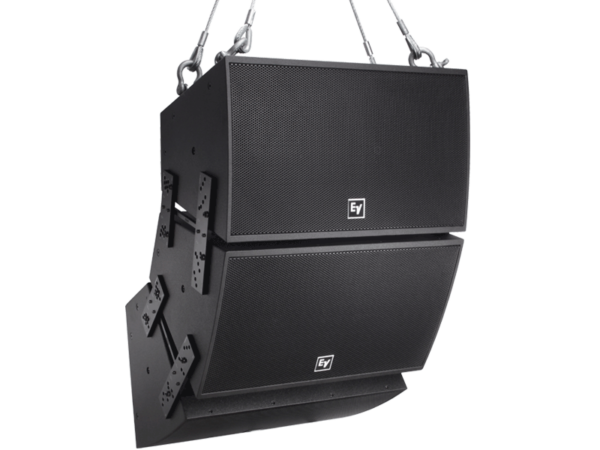

Suspension: (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
Height: 768.6 mm
Width: 406.3 mm
Depth: 413.3 mm
Weight Net: 28.6 kg
