Opis
High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.

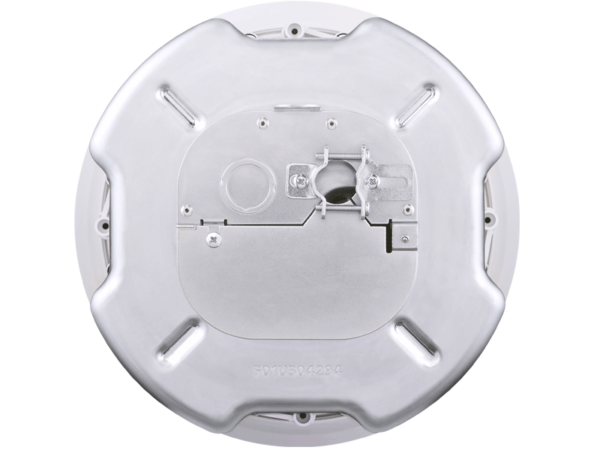

High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.

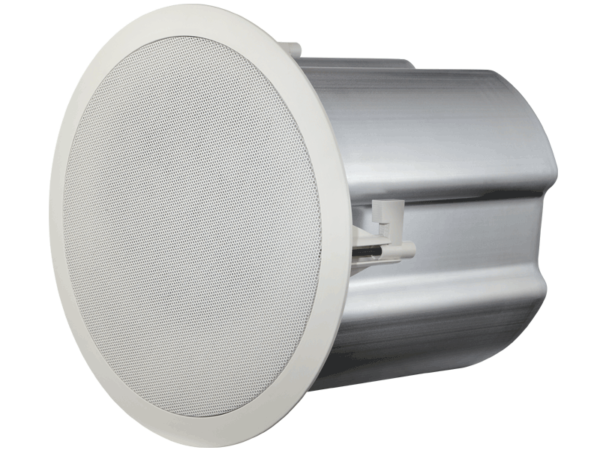

Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.

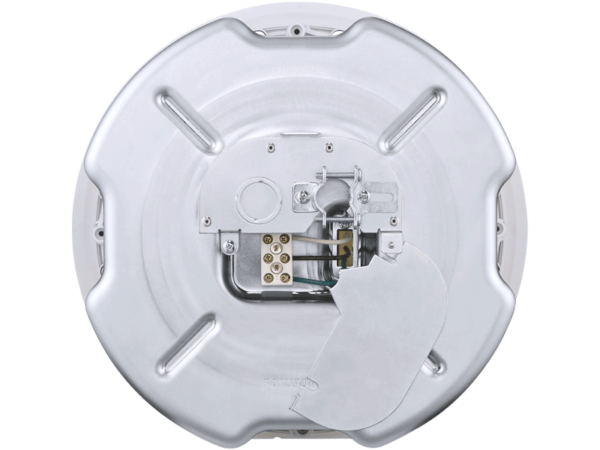

Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with EN 54 (pending), UL 1480, and 2043 standards.
Specifications:
Coverage (Nominal -6 dB): 100°
Cutout Size: 294.3 mm
Diameter (Max): 327 mm
Frequency Range: 40 – 20kHz
Impedance: 8 Ω
Mounting Systems: C ring, tile bridge
Regulatory Approvals: UL1480, 2043; EN54; CE
Transformer Taps (Transformer Version Only): 70V: 60W, 30W, 15W, 7.5W, 8 ohm, 100V: 60W, 30W, 15W, 8 ohm
Sensitivity 1 W/1 m: 96 dB
Max. SPL/1m (calc): 116 db avg, 122 pk dB

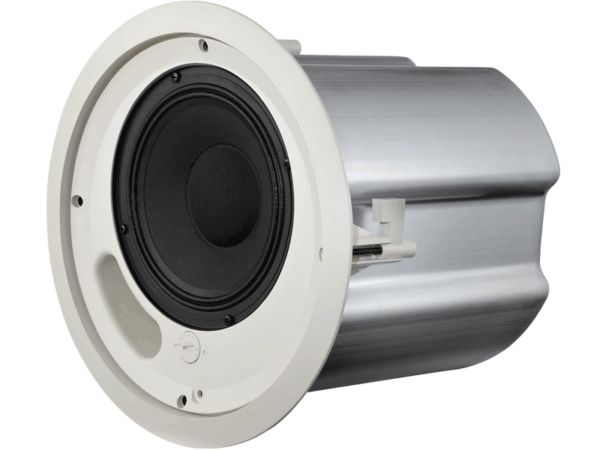

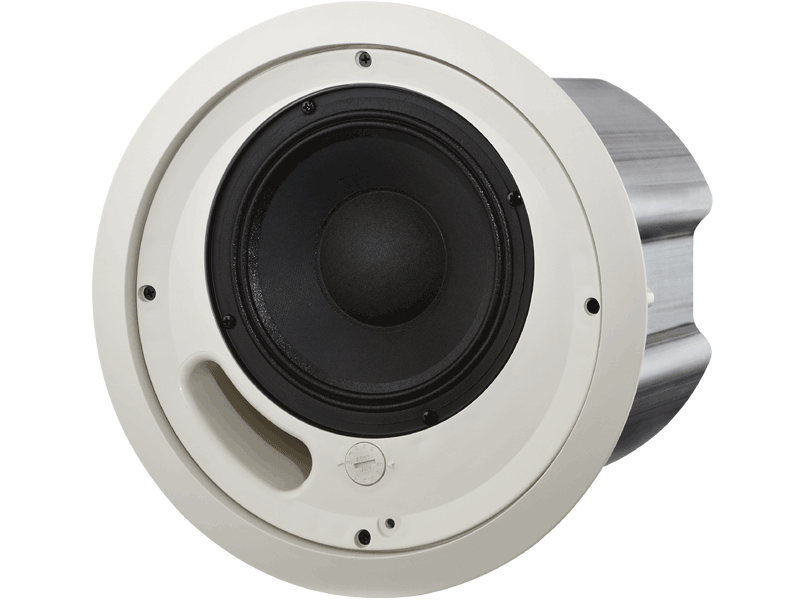

LF Transducer: 200 mm (8 in)
HF Power Handling: 200W program, 100W pink noise Watts
HF Transducer: 35 mm compression driver
Connector Type: Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size
Enclosure Material: ABS plastic (UL94V-0) baffle, steel back can

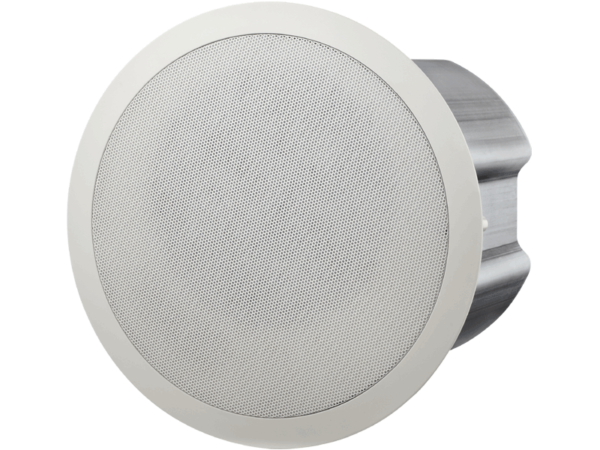

Grill: Color-matched steel grille with fabric
Height: 324 mm
Weight Net : 8 kg
Shipping Weight: 20.23 kg
