SPECIFICATIONS:
Frequency response (-3 dB): 52 Hz – 18 kHz
Frequency range (-10 dB): 45 Hz – 19 kHz
Rotatable coverage: 60° x 40° FOH, 40° x 60° Monitor
Rec. high-pass frequency: Use factory preset
Axial sensitivity: 97 dB (1 W/1 m)
Max. SPL: 136 dB
Power handling: 500 W (Continuous), 3500 W (Peak)
Nominal impedance passive: 8 Ω
Nominal impedance biamp LF: 8 Ω
Nominal impedance biamp HF: 8 Ω

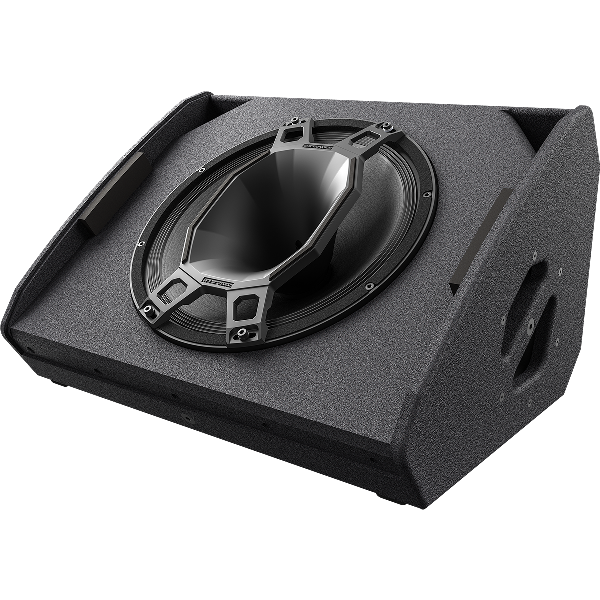

Transducer: CXCA3128-1CA

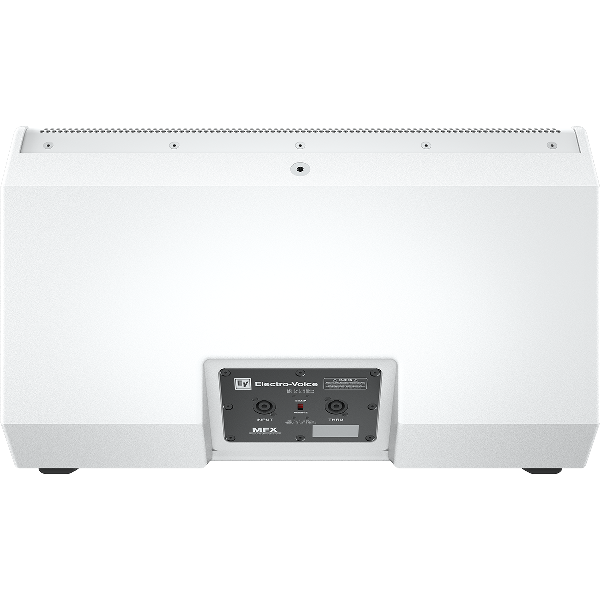

Connectors : Neutrik NL4 input with NL4 pass through
Enclosure: 12-18-mm Baltic birch plywood with EVCoat
Logo: Rotatable
Monitor angles: 35° and 55°
Grille: 1.5-mm zinc plated steel with corrosion resistant coating
Handles: Two with integrated cup for standard 35-mm pole
Suspension: Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories
Color: Black (RAL 9005) or white (RAL 9003)
Dimensions (H x W x D): 600 mm x 500 mm x 339 mm
Net weight: 23 kg
Shipping weight: 25.2 kg
