Opis

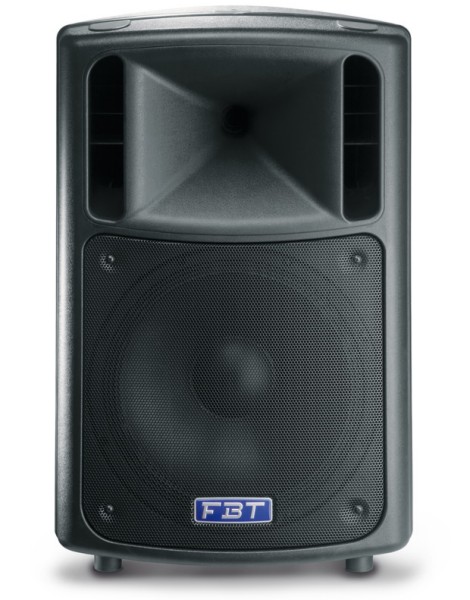

2-way, bi-amplified, bass reflex design cabinet
380 mm (15″) LF woofer with 64 mm (2.5″) voice coil, custom made for FBT
25 mm (1″) exit throat B&C HF compression driver with 44 mm (1.7″) voice coil
Frequency response from 42 Hz to 20 kHz
Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies
Digital Signal Processor with 4 Equalization Presets

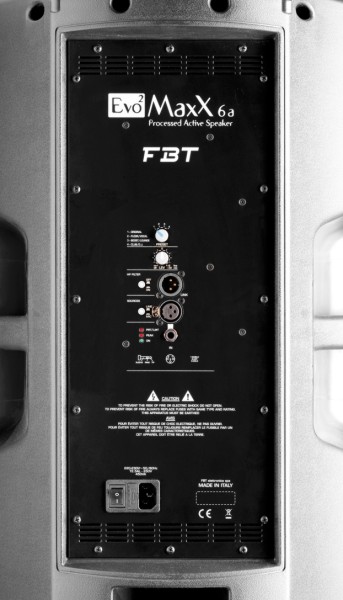

Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators
90°H x 60°V Constant Directivity Horn
Sturdy gas-injected polypropylene molded enclosure with two integrated handles and Stage Floor Monitor taper
4 x M10 suspension points, 35 mm (1⅜”) top-hat speaker stand socket, wall bracket mount flange plate
Enclosure suitable for stacking
Extremely light, Net Wt. only 21 kg
Specifications:
Configuration: 2 way
Built-in amplifier LF/HF: 400/100 W RMS
Built-in amplifier peak LF/HF: 800/200 W
Frequency response: 42 Hz – 20 kHz -6dB
Low Frequency woofer: 15 – 2.5 coil inch
High Frequency driver: 1 – 1.7 coil inch
Maximum SPL cont/peak: 126/130 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 kohm
Crossover Frequency: 1.6 kHz
AC Power requirements: 450 VA
Input connector: XLR with loop
Power cord: 5 m
Net Dimension (WxHxD): 482x757x399 mm
Net Weight: 24.4 kg
Transport Dimension (WxHxD): 595x878x515 mm
Transport Weight: 28.7 kg
