Opis

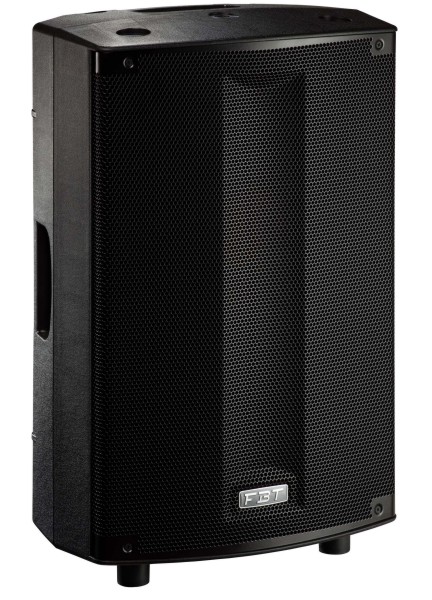

2-way, bi-amplified, bass reflex design cabinet
Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with graphic display

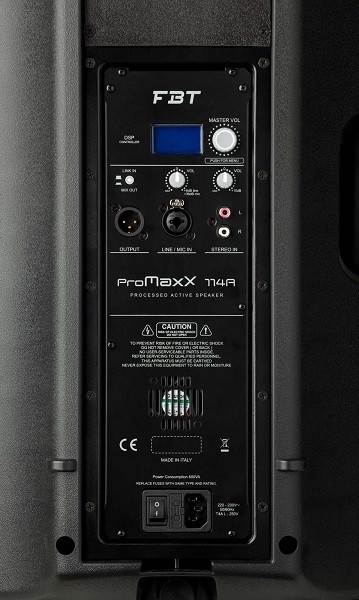

Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push

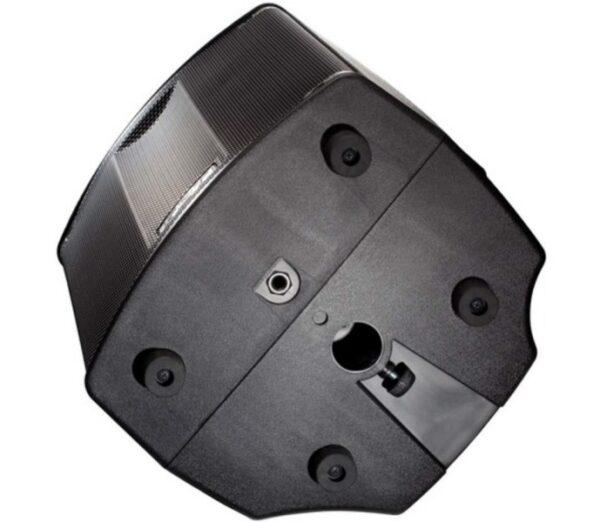

2 x M10 suspension points, 35 mm (1,3/8″) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
355 mm (14″) LF neodymium magnet woofer with 75mm (3″) voice coil, custom made for FBT by B&C
35 mm (1,4″) exit throat B&C HF compression driver with 64 mm (2,5″) voice coil
Frequency response from 45 Hz to 20 kHz
Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14″ LF Woofer for lower frequency SPL

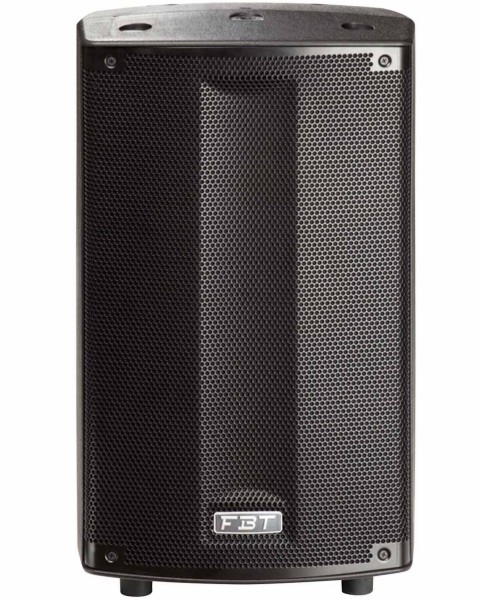

Full grille design with black acoustic cloth
Extremely light, only 17,5 kg
Specifications:
Configuration: 2 way
Built-in amplifier LF/HF: 700/200 W RMS
Built-in amplifier peak LF/HF: 1400/400 W
Frequency response: 45 Hz – 20 kHz -6dB
Low Frequency woofer: 14″ – 3″ coil neodymium
High Frequency driver: 1.4″ – 2.5″ coil
Maximum SPL cont/peak: 127.5 / 135.5 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 kohm
AC Power requirements: IEC VA
Input connector: XLR with loop, RCA ST
Power cord: 5 m
Net Dimension (WxHxD): 402 x 644 x 345 mm
Net Weight: 17.5 kg
Transport Dimension (WxHxD): 500x745x440 mm
Transport Weight: 20.1 kg
