Opis
2-way, bi-amplified, bass reflex design
Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59″) birch plywood scratch resistant enclosure and internal bracing
High efficiency switch mode power supply
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
320 mm (12″) LF woofer with 64 mm (2.5″) voice coil, custom made for FBT
25 mm (1″) exit throat B&C HF compression driver with 36 mm (1.4″) voice coil
Frequency response from 48 Hz to 20 kHz
80°H x 50°V Constant Directivity Rotatable Horn
6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8″) top-hat
Speaker stand socket, two aluminium handles
45° monitor taper
Specifications:
Configuration: 2 way
Built-in amplifier LF/HF: 700/200 W RMS
Built-in amplifier peak LF/HF: 1400/400 W
Frequency response: 42 Hz – 20 kHz -6dB
Low Frequency woofer: 12″ – 2.5″ coil
High Frequency driver: 1″ – 1.4″ coil
Maximum SPL cont/peak: 126/133 dB
Dispersion: 80° x 50° rotatable HxV
Input impedance: 22 kohm
AC Power requirements: 640 VA
Input connector: XLR with loop, RCA ST
Power cord: 5 m

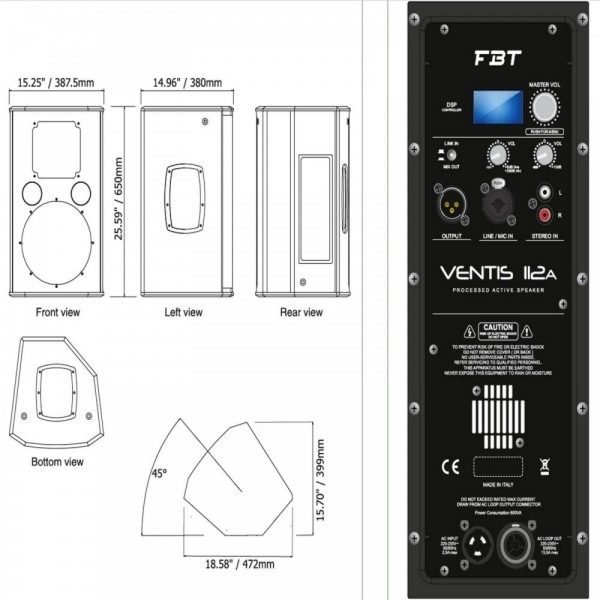

Net Dimension (WxHxD): 387 x 665 x 380 mm
Net Weight: 20.6 kg
Transport Dimension (WxHxD): 500 x 765 x 470 mm
Transport Weight: 23.1 kg
