Opis

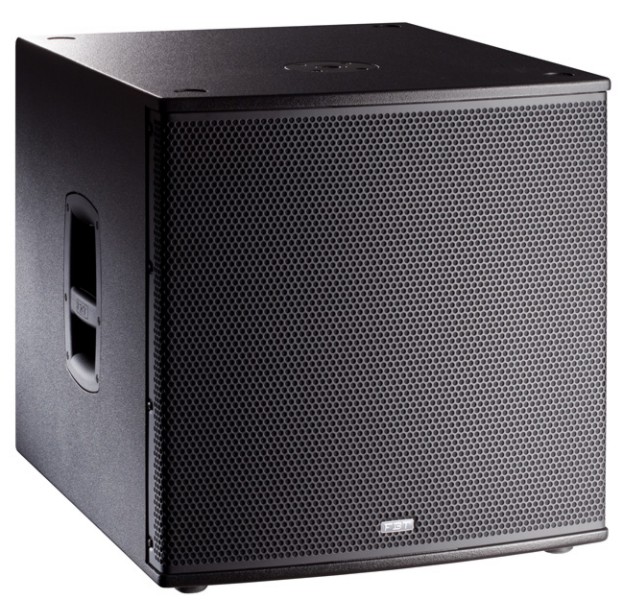

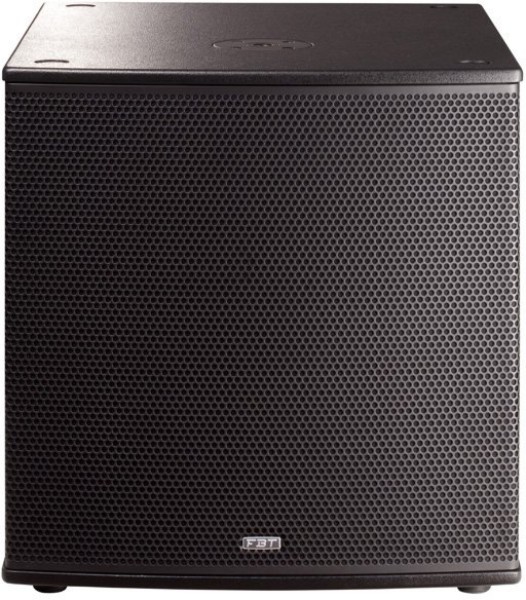

Active subwoofer in bass-reflex design
460mm (18″) B&C high excursion woofer with 75mm (3″) voice coil
Frequency response from 33Hz to 100Hz
1200W RMS Class D power amplifier with swittching mode power supply
Processor DSP with 8 presets, cardioid configuration, delay
Control Panel with XLR input and link, volume, presets, delay, phase 0° -180°, ground-lift
Neutrik powerCON power IN and LINK connectors
15 mm (5/8″) birch plywood with scratch-resistant coating Stackable
M20 (20 mm) top mount speaker stand socket, two diecast aluminium carrying handles with rubber inserts
Optional 4 swivel-mount casters 80 mm (3.15″) on request
Suitable for low frequency extension and reinforcement of the CLA406A array, especially for live performance
Specifications:
Configuration: 1 reflex way
Built-in amplifier LF/HF: 1200 W RMS
Built-in amplifier peak LF/HF: 2400 W
Frequency response: 33 Hz – 120 Hz -6dB
Low Frequency woofer: 1×18″ -3 inch coil
Maximum SPL cont/peak: 134/138 half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 kohm
Crossover Frequency: preset dependant kHz
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5 m
Net Dimension (WxHxD): 550 x 550 x 660 mm
Net Weight: 40 kg
Transport Dimension (WxHxD): 700 x 700 x 800 mm
Transport Weight: 50 kg
