Opis

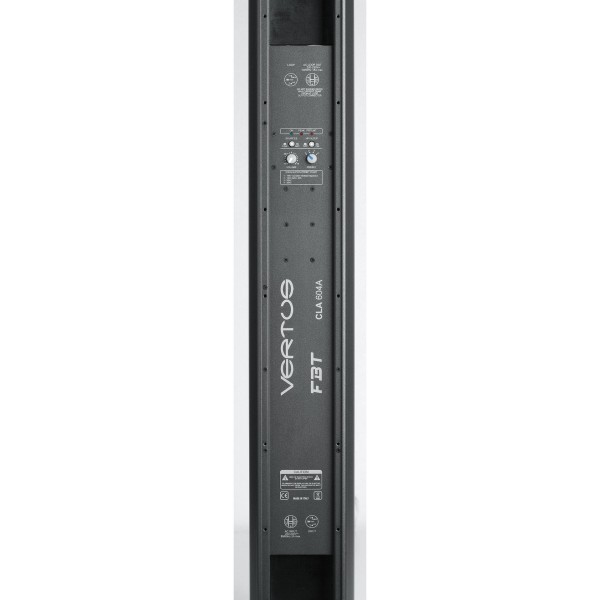

2-way bi-amplified Line Array Column
6 x 4″ (100 mm) custom woofer with 1″ (25 mm) voice coil
4 x 1″ (25 mm) neodymium dome tweeter on waveguide
130Hz to 20KHz frequency response
Class D 400Wrms amplifier for LF and 100Wrms for HF with switch mode power supply
DSP processor with 4 available equalization presets

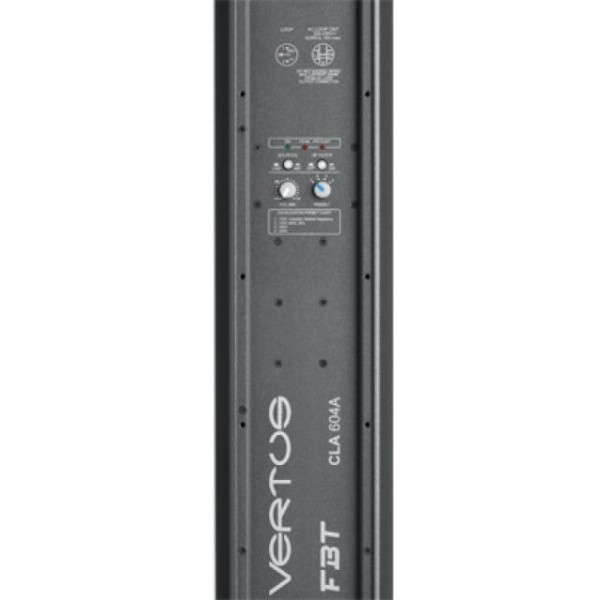

Control panel with volume, presets, HP filter, Mic-Line, status LED
XLR input and Neutrik POWERCONN supply input at the lower part of the column; XLR link and Neutrik POWERCON loop output at the higher part, in order to hide each connection cable
100°H x 20°V dispersion
Extruded-aluminum powder-coated cabinets. Superior latching system, enables the extension of the length of the line array by adding CLA604A modules for increased modularity of the system.
Possibility to angle the columns of +/- 30° on a horizontal plane
Ideal for both live applications, assisted by the CLA 208SA active subwoofer, as well as for fixed installation
Easily expandable for a total power of 6600W (stereo system composed of 3 x CLA604A and 3 x CLA208SA)
Very light and easy to carry
Vertus is also available in white colour
Specifications:
Built-in amplifier LF/HF: 400/100 W RMS
Built-in amplifier peak LF/HF: 800/200 W
Frequency response: 130 Hz- 20 kHz -6dB
Low frequency woofer: 6 x 4″ – 1″ coil
High frequency driver: 4 x 1″ – 1″ coil
Maximum SPL cont/peak: 122/125 dB
Dispersion: 100° x 20° H x V
Input impedance: 22 kohm
Crossover frequency: 2.5 kHz
Ac power requirements: 450 VA
Input connector: XLR with loop
Power cord: 5 m
Net Dimension (WxHxD): 130x841x130 mm
Net weight: 9 kg
Transport Dimension (WxHxD): 220x930x220 mm
Transport weight: 11.5 kg
