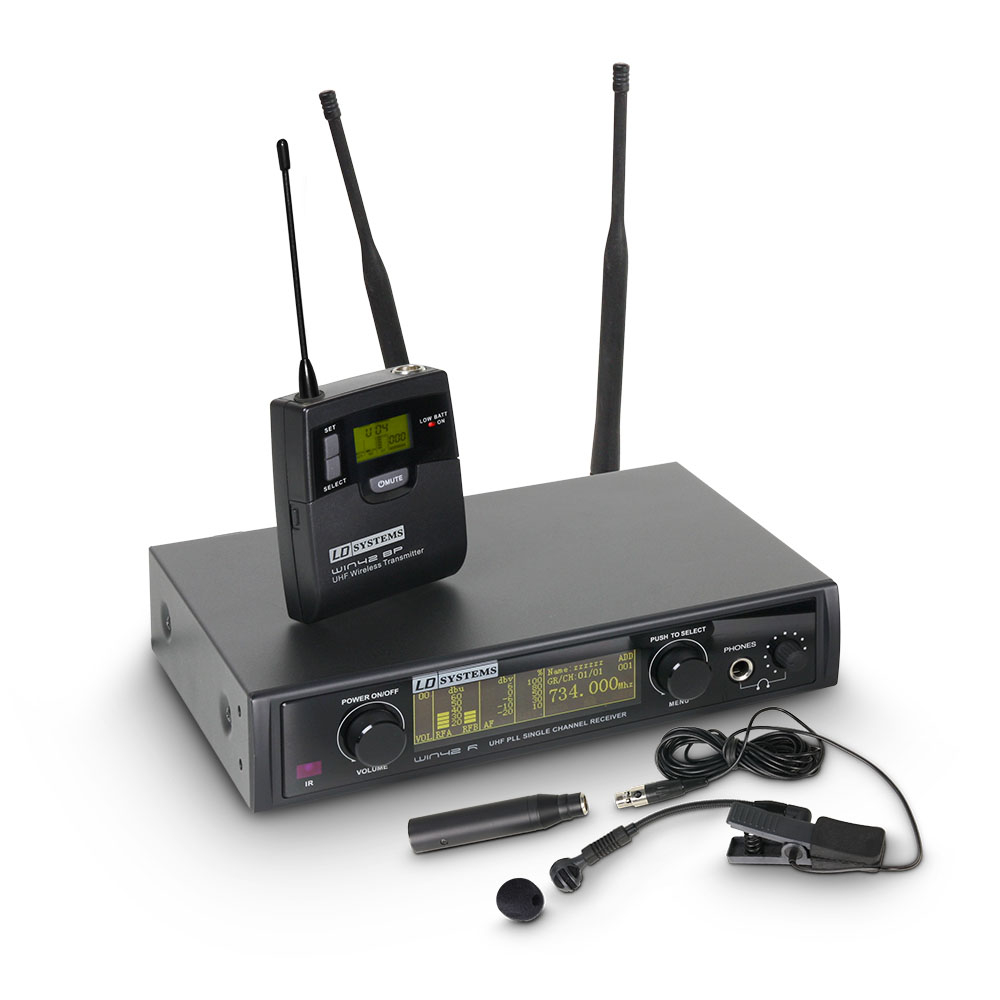

Wireless Microphone System with Belt Pack and Brass Instrument Microphone

The working UHF frequency range is 734 MHz to 776 MHz.
The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The “channel scan” function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment.

MPC: Izvorna cijena bila je: 495,00 €.Gotovina/Virman 420,00 Trenutna cijena je: 420,00 €.

Kategorija:
Brand:

Dostupno odmah

Opis

Specifications:

General:
Product type: Wireless Microphone Systems
Type: Wind Instruments
Transmission frequency range: 734 – 776 MHz

Items in this set:

LD Systems WS 1000 MW Clip Microphone for Brass Instruments:

Product type: Wireless Microphone System Accessories
Type: Microphones
Frequency response: 50 – 18.000
Directivity: Cardioid
Sensitivity (quiescent voltage @ 1kHz): – 45 dB +/- 3 dB
Nominal impedance: 250 Ohm(s)
Max. SPL (1% THD @ 1kHz): 133 dB
Phantom power requierements: 5 V
Microphone input: Mini-XLR (3-pin, female)
Cable length: 1.5 m
Accessories (included): Foam windscreen, Phantom power adapter LDPHA
Weight: 0,05 kg
Features: 70 mm gooseneck

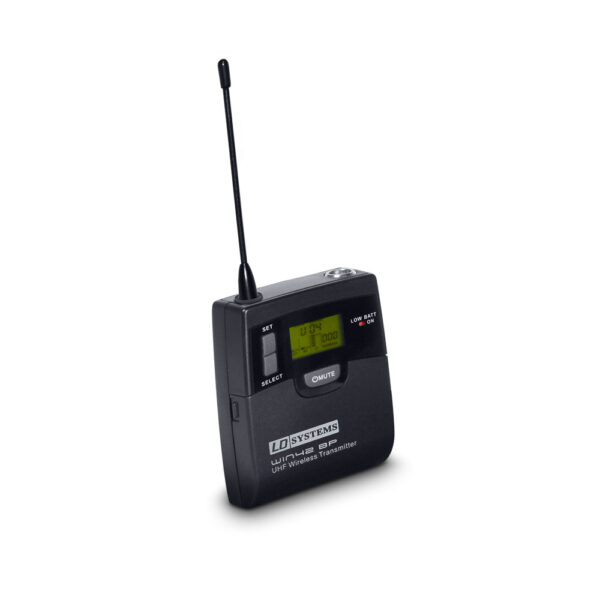

LD Systems WIN 42 BP Bodypack transmitter for LD WIN 42 BPH wireless microphone system:

Product type: Wireless Microphone System Accessories
Type: Belt Packs
Transmission frequency range: 734 – 776 MHz
Channels: 1680
Groups: 20 groups + 1 user group
Inputs: Mini-XLR (3-pin) with phantom power (for headset)
Frequency response: 60 – 16.000
Rated HF output power: Variable (10, 30, 50 mW)
Controls: Set, power (on/off/mute), select
Indicators: power/battery status low (LED), multifunction LC display
Power supply: 2 x AA battery
Operating time: >14 h (with alkaline batteries)
Width: 63 mm
Height: 87 mm
Depth: 25 mm
Weight: 0,1 kg
Other features: IR frequency synchronisation, incl. batteries, Transmission power adjustable in 3 stages, Adjustable audio sensitivity, Battery status indicator

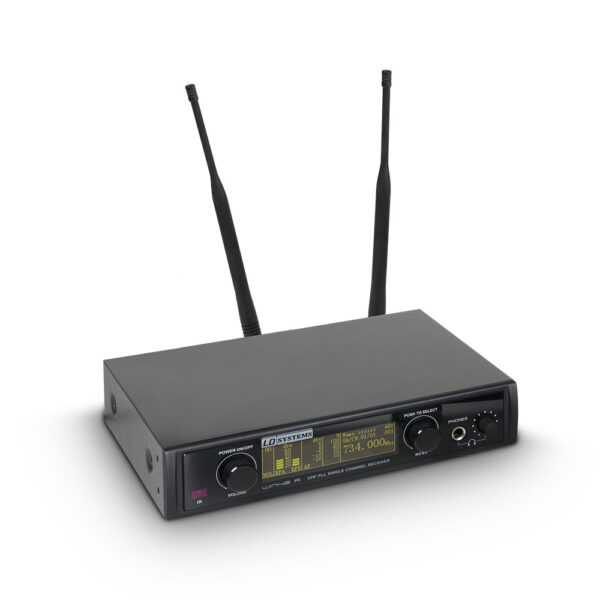

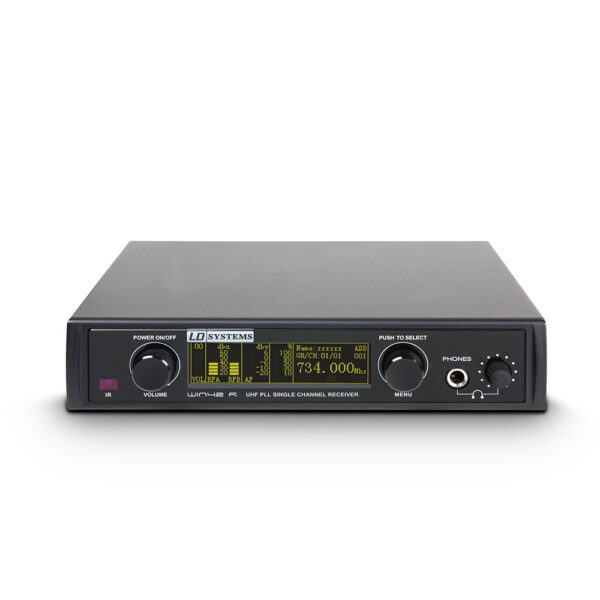

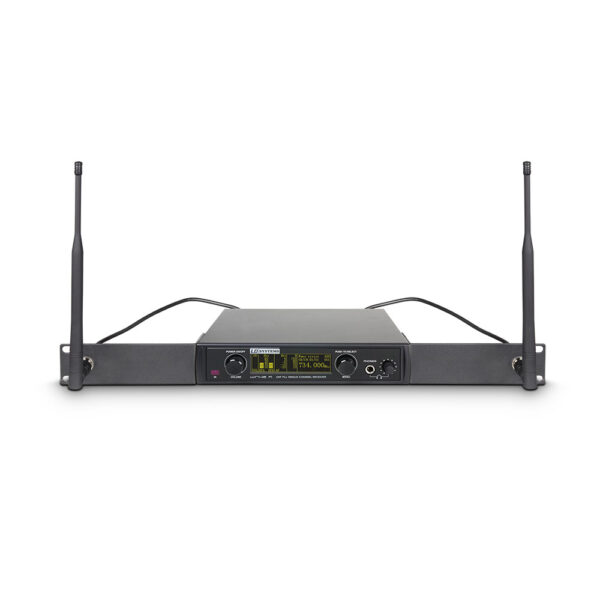

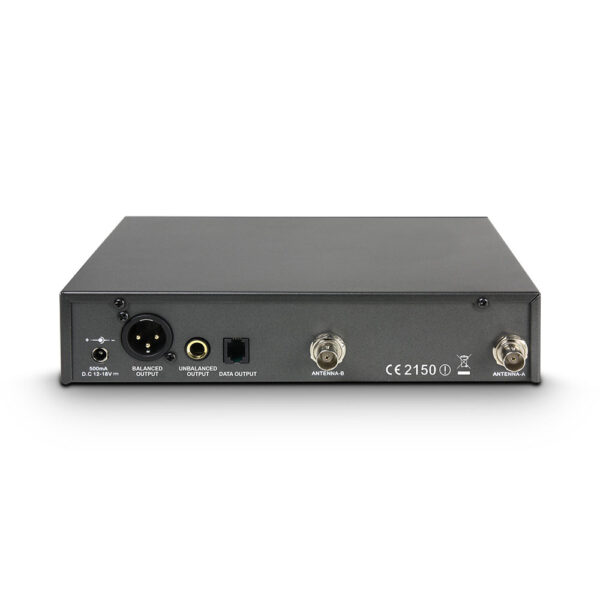

LD Systems WIN 42 R Receiver for LD WIN 42 wireless microphone system:

Product type: Wireless Microphone System Accessories
Type: Receivers
Modulation Type: FM
Transmission frequency range: 734 – 776 MHz
Channels: 1680
Groups: 20 groups + 1 user group
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 60 – 16.000
Noise reduction: Squelch
Transmission optimization: address allocation
Total Harmonic Distortion (THD): < 1 %
Signal-to-noise ratio: > 100 dB
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack
Max. output level: + 10 dBu
Headphones ouput: 1
Headphones outputs: 6.3 mm TRS
Controls: menu, headphones volume, Power / Volume
Indicators: multifunction LC display
Power supply: External Power Supply, 13.5 V DC
Operating voltage: 13.5 V DC
Width: 212 mm
Height: 44 mm
Depth: 184 mm
Weight: 1 kg
Accessories (included): 2 x antenna, User’s manual, Batteries, Power supply
Other features: IR frequency synchronisation, channel search function
