PA Power Amplifier Class D, 2 x 200 W @ 4 Ohms XS400 is an extremely compact, dependable Class D power amplifier with an output of 200W per channel at 4 ohms 400W in 8-ohm bridged mode, and a wide transmission range of 20Hz – 20kHz

MPC: Izvorna cijena bila je: 530,00 €.Gotovina/Virman 450,00 Trenutna cijena je: 450,00 €.

Kategorija: ,
Brand:

Isporučivo za 2-3 tjedna

Opis

SPECIFICATIONS:
Product type: Power Amplifier
Type: PA Power Amplifier
Rated ouput power (1kHz @ 4 Ohms): 2 x 200 W
Rated ouput power (1kHz @ 8 Ohms): 2 x 100 W
Rated ouput power (1kHz @ 8 Ohms, bridged): 400 W
Output circuitry: Class D
Frequency response: 20 – 20000 Hz
Total Harmonic Distortion (THD): less than 0.1 %
Gain: 32 dB / 26 dB / 28 dB dB
Input sensitivity: 0.68 V / 1.4 V / 1.2 V (not passed) V
Protection circuits: DC, over-current, short circuit, soft start, thermal overload

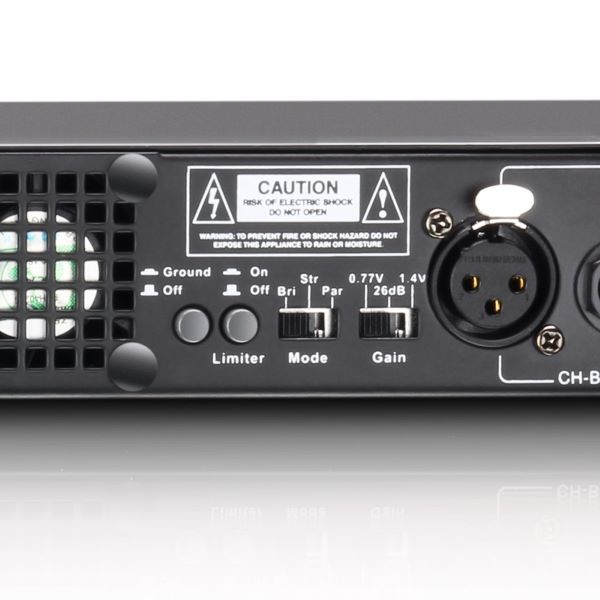

Controls: Gain, ground lift, limiter, Mode, On / Off, volume

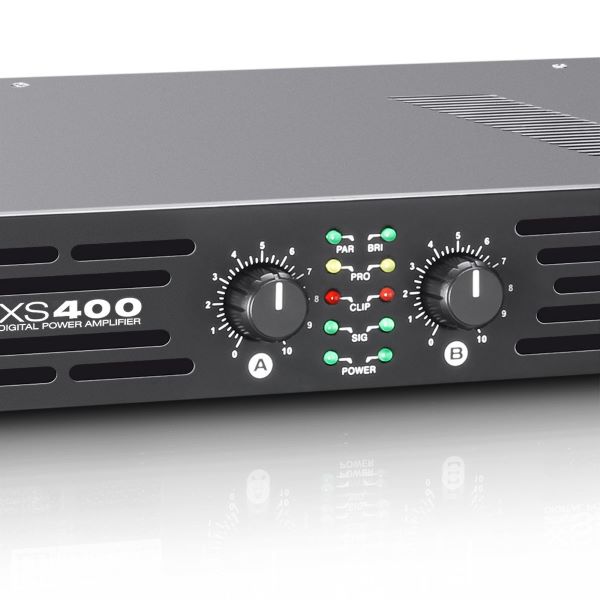

Indicators: clip, Mode, Power, Protect (protection circuit engaged), Signal
Line inputs: 2
Line input connectors: 6.3 mm jack, RCA
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible, Terminal posts
Cooling: low-noise fan
Operating voltage: Switching power supply
Power consumption @ full load: 470 W
Operating voltage: 115 V AC / 230 V AC (switchable)
Width: 482 mm
Height: 44 mm
Depth: 244 mm
Weight: 3,4 kg
