Opis

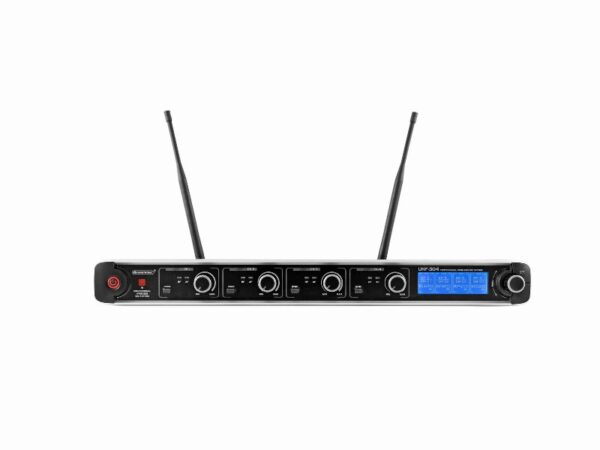

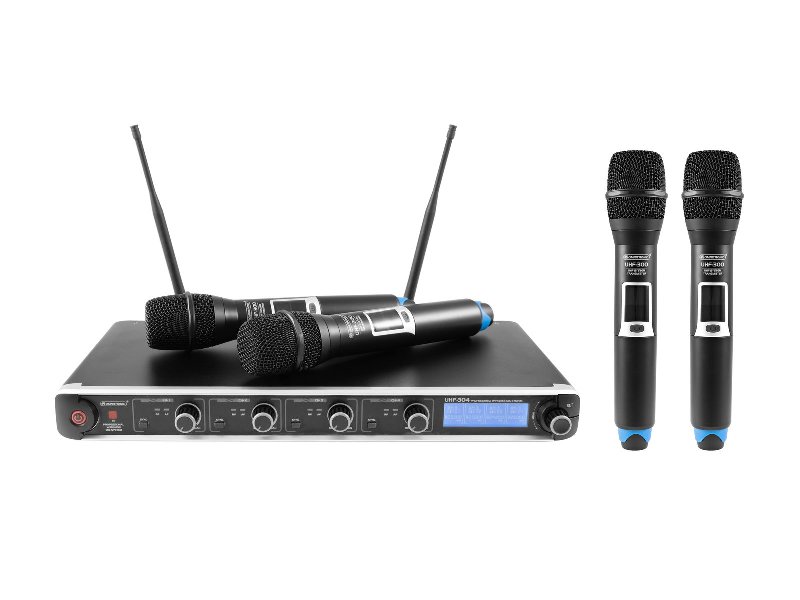

4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitters via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
4 separate channels with volume controls

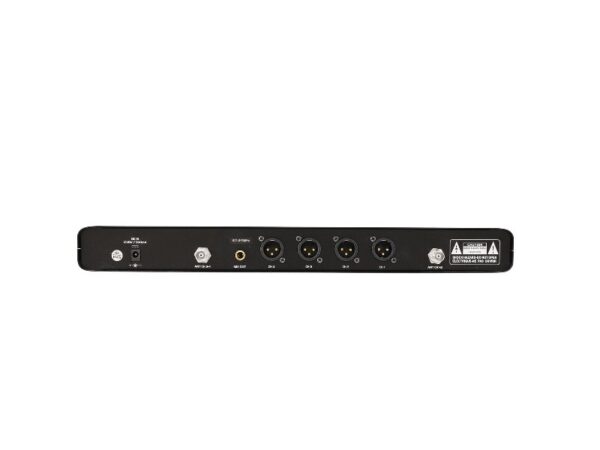

Balanced XLR output per channel
Unbalanced 6.3 mm jack for mixed signal output
Jack cable included
Removable antennas (BNC connection)
Incl. mounting brackets for 483 mm rack installation
4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)
Use a operating range up to 60m
TECHNICAL SPECIFICATIONS:
Type: Wireless set
Number of channels: 4
Frequency range: 50 – 18.000 Hz
S/N ratio: >80 dB
THD: > <0.5 % at 1 kHz
Connections: Output: 4 x Microphone via 3-pin XLR
Output: 1 x line via 6.3 mm plug (unbal.)
Frequency band: UHF 823 – 832 MHz; UHF 863 – 865 MHz
Frequency selection: 93 Switchable frequencies
Modulation: FM
RF power output: 10 mW
Frequency stability: ± 0.001 %
Range: 60 m
Weight: 3.00 kg
Receiver:
Power supply: 100-240 V AC, 50/60 Hz, 12 V DC 500 mA
Power consumption: 6 W
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Material: Metal
Housing design: Desktop console housing 1 U
(19″) 48.3 cm rack installation (provided)

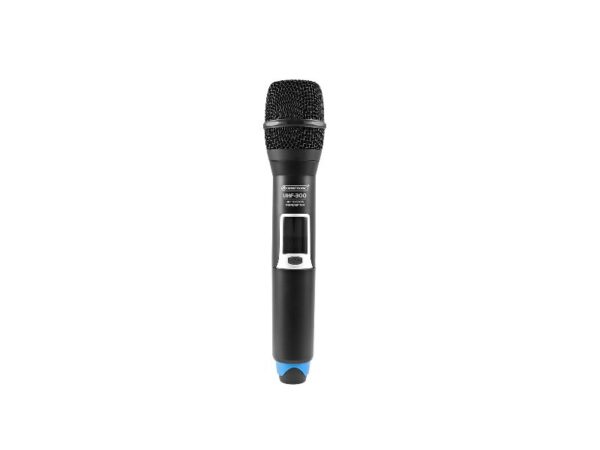

Microphone:
Type: Transmitter
Power supply: 3 V DC
Capsule type: Dynamic
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Power connection: Battery/battery pack
Switch: On/off switch
Material: Plastic
Dimension: Length: 25 cm
Diameter: Ø 5.1 cm
Weight: 0.23 kg
