Opis

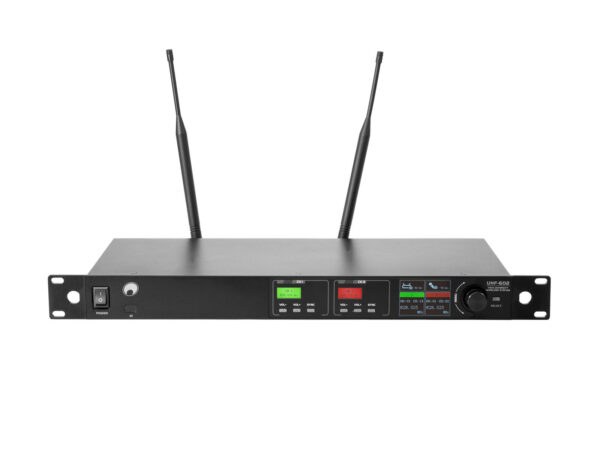

Receiver:
Automatic frequency setup
ID transmitter verification prevents incorrect use and interference from external radio transmitters
Different user colors selectable for easy differentiation
7-band equalizer for sound tuning
Lock function for prevents undesired changes to settings
Multifunctional jogdial for menu settings
(19″) 48.3 cm rack installation 1 U
Ultra-low latency
Multicolor TFT display

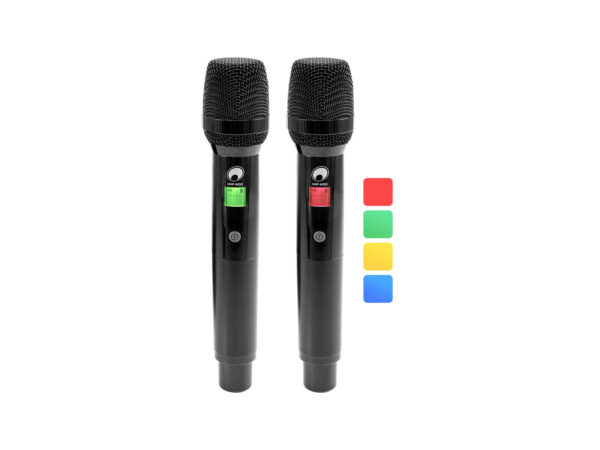

Microphone:
Polar pattern: Cardioid
Multicolor LCD display
Charge status indicator
Technical specifications:
Type: Wireless set
Range: Range up to 60m with line-of-sight
Frequency band: 520-554 MHz
Switching bandwidth: 11 MHz
Parallel mode: Max. 24 transmitter in 2 bands
Frequency selection: Frequencies automatically scannable
Weight: 2.52 kg
Receiver
Power supply: 100-240 V AC, 50/60 Hz
12V DC 1000 mA
Power consumption: 4.5 W
Protection class: Protection class III
Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
Number of channels: 2
Frequency range: 50 – 16000 Hz
S/N ratio: >80 dB
THD: <0.5 % at 1 kHz
Diversity: True diversity
Latency: < 3 ms
Modulation: FM
Housing color: Black
Display type: 3 x multicolor TFT display
Display: Frequency , goup , channel , RF signal level; AF audio level , Mute
Control elements: Level control per channel, power switch, encoder, menu

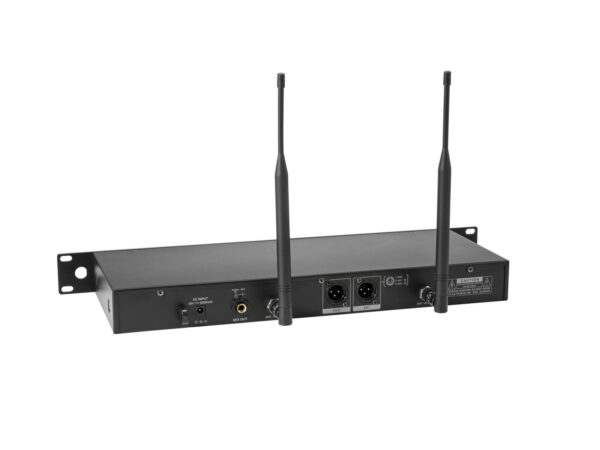

Connections: Input: antenna via 2 x BNC (F)
Output: microphone via 2 x 3-pin XLR (M) mounting version
Output: microphone via 1 x 6.3 mm plug (unbal.)
Equalizer: Graphic equalizer 7-band
Material: Metal
Housing design: (19″) 48.3 cm rack installation 1 U
Mounting depth: 21 cm
Dimensions:
Width: 48.5 cm
Depth: 21 cm
Height: 4.4 cm
Weight: 1.5 kg
Microphone
Power supply: 3V DC 118 mA
Capsule type: Dynamic
Size: Ø 2.54 mm
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Sensitivity: -54 dB
RF power output: 10 mW (HI); 5 mW (LO)
Housing color: Black
Display type: Multicolor LCD display
Display: Frequency , charge status indicator , Mute , RF signal level
Switch: On/off/mute switch
Material: Metal
Dimensions: Length: 25.9 cm
Diameter: Ø 4.95 cm
Weight: 0.351 kg
