Palmer MONICON

Opis

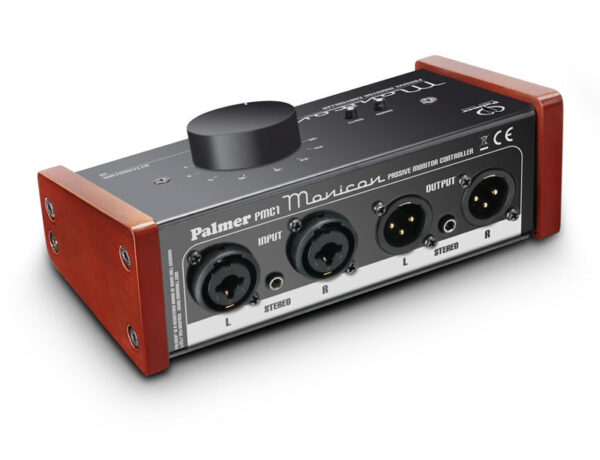

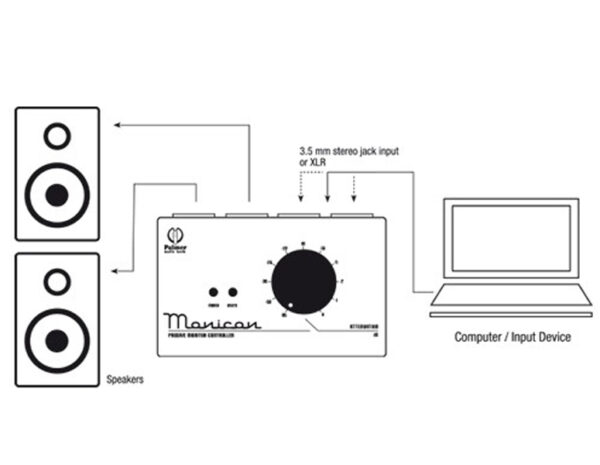

The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus the Palmer Monicon is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking “little helper” that is a typical Palmer product.

Specifications:
Product type: Other Studio and Recording Equipment
Channels: 1
Inputs: 2
Input connectors: 3.5 mm TRS, XLR
Input type: balanced/unbalanced (depending on TS/TRS connection)
Max. input level: 20 dBu
Input impedance: (balanced) 10k Ohm(s), (unbalanced) 5k Ohm(s)
Outputs: 2
Output connectors: 3.5 mm TRS, XLR
Output type: balanced/unbalanced (depending on TS/TRS connection)
Max. output level: 20 dBu
Output impedance: 600 Ohm(s)
Frequency response: 10 – 40000 Hz
THD: 0.001 %
Max. attenuation: (Attenuator + Mute) 112 dB, (Attenuator) 85 dB

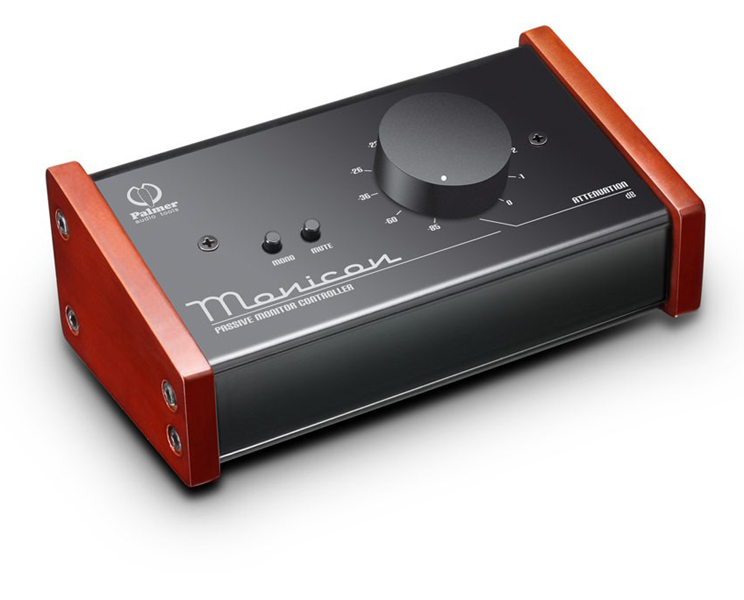

Controls: attenuation, mono, mute
Cabinet material: sheet steel, wood
Cabinet surface: Powder coated
Width: 164 mm
Height: 62 mm
Depth: 85 mm
Weight: 0,75 kg
