Opis

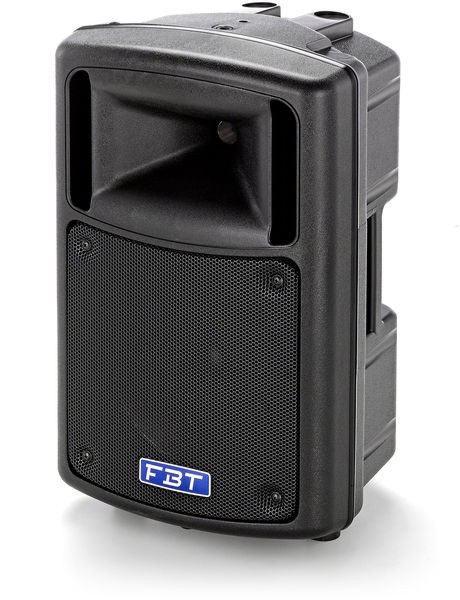

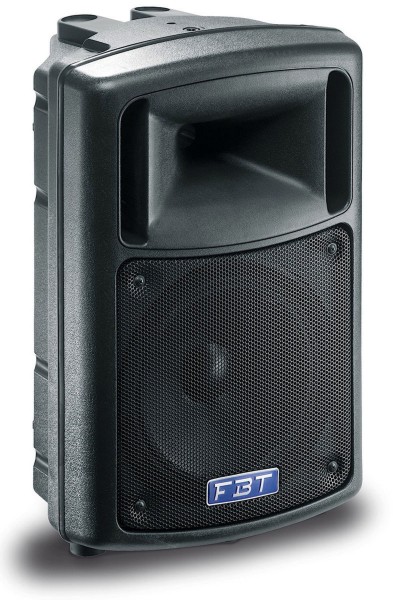

2-way, bi-amplified, bass reflex design cabinet
250 mm (10″) LF woofer with 50 mm (2″) voice coil, custom made for FBT
25 mm (1″) throat exit B&C HF compression driver
Frequency response from 58 Hz to 20 kHz
Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies
Digital Signal Processor with 4 Equalization Presets

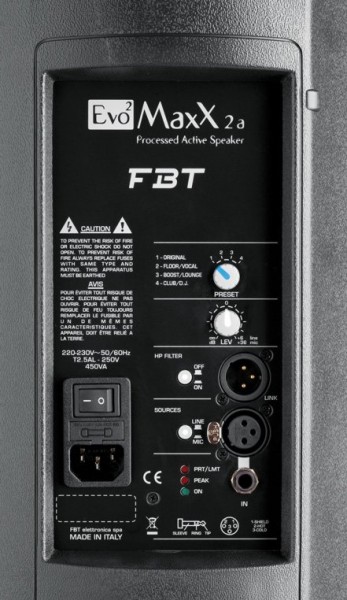

Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators
90°H x 60°V Constant Directivity Horn

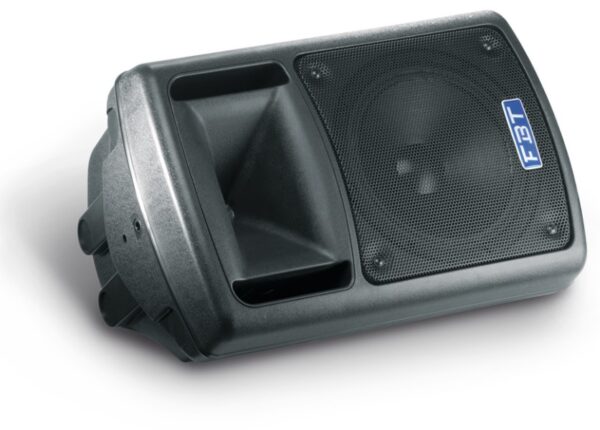

Sturdy gas-injected polypropylene molded enclosure with one integrated handle and Stage Floor Monitor taper
2 x M10 suspension points, 35mm (1⅜”) top-hat speaker stand socket, wall bracket mount flange plate
Enclosure suitable for stacking
Extremely light, Net Wt. only 12 kg
Specifications:
Configuration: 2 way
Built-in amplifier LF/HF: 400/100 W RMS
Built-in amplifier peak LF/HF: 800/200 W
Frequency response: 58 Hz – 20 kHz -6dB
Low Frequency woofer: 10″ – 2″ coil
High Frequency driver: 1″ – 1.4″ coil
Maximum SPL cont/peak: 122.5 / 128 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 kohm
Crossover Frequency: 1.8 kHz
AC Power requirements: 450 VA
Input connector: XLR with loop
Power cord: 5 m
Net Dimension (WxHxD): 352 x 550 x 307 mm
Net Weight: 12 kg
Transport Dimension (WxHxD): 435 x 630 x 395 mm
Transport Weight: 14 kg
