Opis
2-way, bi-amplified, bass-reflex design
380mm (15”) B&C neodymium magnet woofer with 75mm (3”) voice coil
50mm (2”) exit B&C HF driver with 64mm (2.5’’) voice coil
Frequency response from 45Hz to 20kHz
Class D built-in amplifiers, 1100Wrms to the LF and 250Wrms Class G to the HF
60°H x 40°V rotatable HF horn
35mm (1.38’’) speaker stand socket
Switch mode power supply
DSP with 6 EQ presets
Birch plywood enclosure, scratch resistant black paint finish

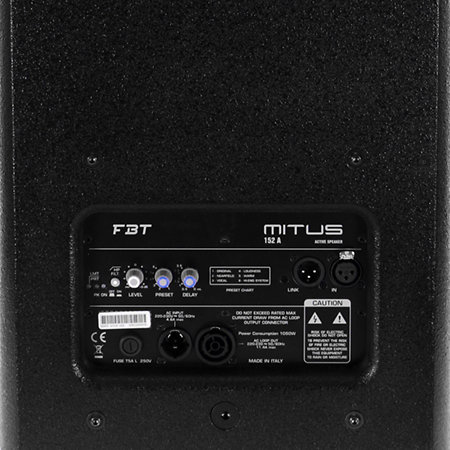

Control panel with XLR input and link, volume, presets, HP filter, ground-lift
12 x M10 fly points and two FBT design aluminum handles
Ideal for live sound reinforcement applications and permanent installations
SPECIFICATIONS:
Configuration: 2 way
Built-in amplifier LF/HF: 1100/250 W RMS
Frequency response: 45Hz-20Khz -6dB
Low Frequency woofer: 1×15 – 3 coil neodymium inch
High Frequency driver: 1×2 – 2.5 coil inch
Maximum SPL cont/peak: 129/136 dB
Dispersion: 60°x40° HxV
Input impedance: 22 Kohm
Input connector: XLR with loop
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 425x805x421 mm
Net Weight: 36.5 kg
Transport Dimension (WxHxD): 550x915x560 mm
Transport Weight: 58 kg
