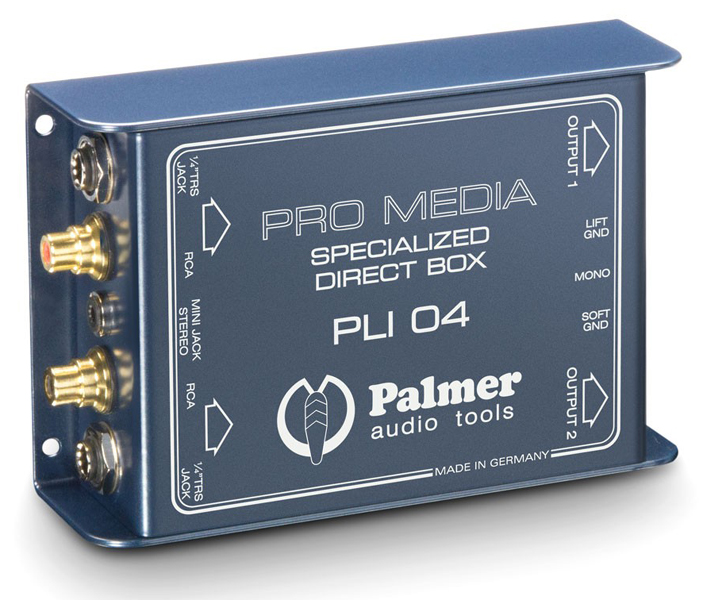

Palmer PLI04

Opis

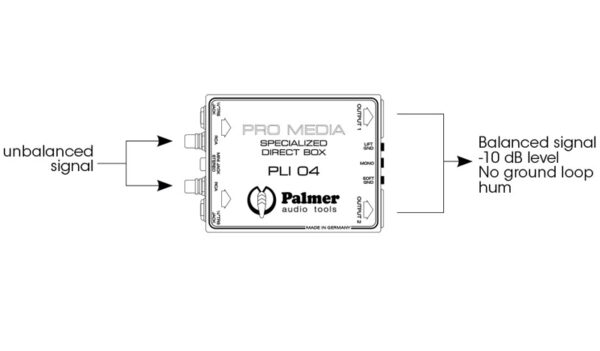

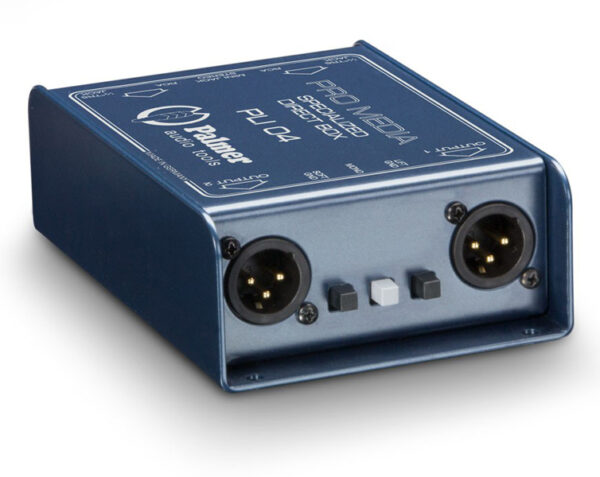

The outputs are conventional transformer balanced XLR sockets, as used in professional PA systems, guaranteeing an electrically decoupled signal, a prerequisite to ensure noise-free operation. One other special feature which should not be forgotten!
Although the PLI-04 is primarily a stereo unit, it can be switched to mono, with the two stereo signals summed and fed to both XLR outputs. The PLI-04 manifests a mechanically robust unit combined with outstanding technical specifications, adding to the list of high quality products that have come to be expected from Palmer.

Specifications:
Product type: Line Isolators
Channels: 2
Inputs: 5

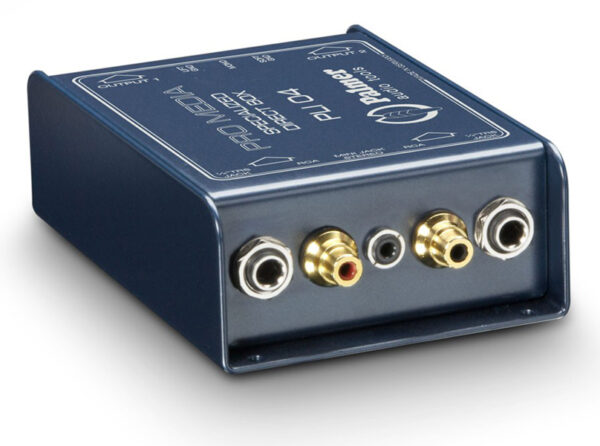

Input connectors: 3.5 mm TRS , 6.3 mm jack , RCA
Input type: unbalanced
Input impedance (at 600 ohms load): 6 k Ohm(s)
Max. input level: + 6 dBu
Outputs: 2
Output connectors: XLR
Output type: balanced
Output impedance: 600 Ohm(s)
Max. output level: + 6 dBu
Transformer balanced: Yes
Ratio: 3.16 : 1
Frequency response: 20 – 20.000 Hz
Controls: ground lift, mono/stereo
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 140 mm
Depth: 95 mm
Height: 35 mm
Weight: 0,712 kg
