Audac COM104

Audac COM104
Audac COM104
full_full_COM104
full_full_COM104_back
full_full_COM10x-bracket

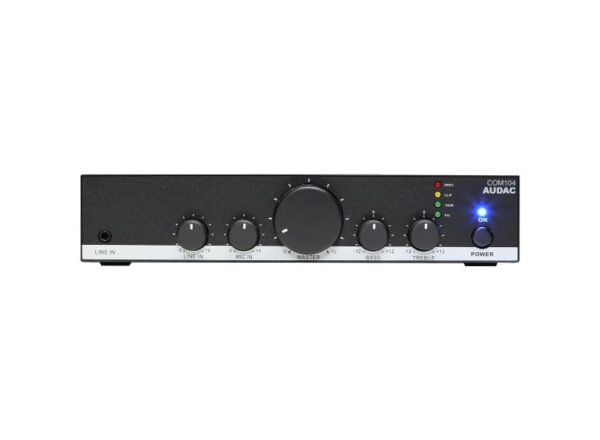

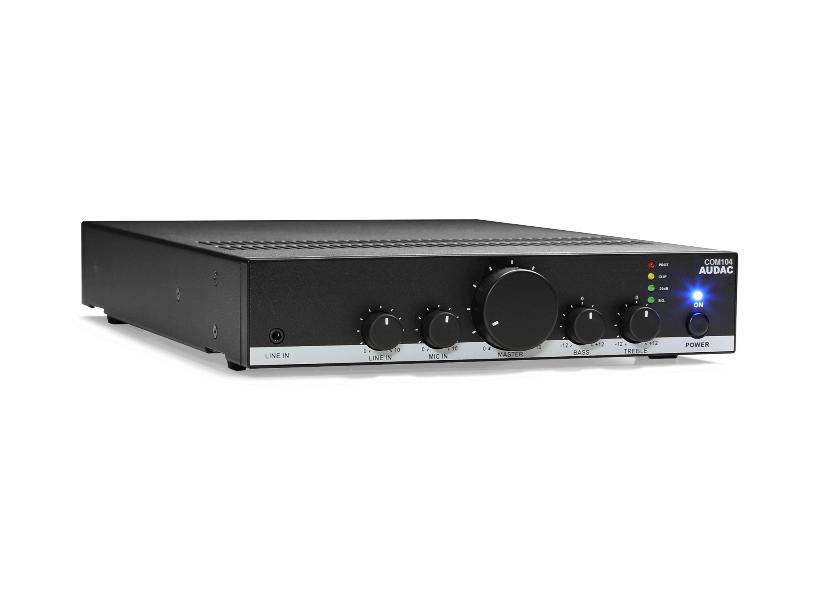

Public Address Amplifier 40W 100V The COM104 is a compact but versatile public address mixing amplifier which offers solutions for small to medium size audio systems in commercial installations. Typical applications are background music systems in retail stores, bars, restaurants and office buildings. The compact and simple design allows installation in any location and operation through any possible user.

CIJENA NA UPIT

MPC: Izvorna cijena bila je: 2,00 €.Gotovina/Virman 1,00 Trenutna cijena je: 1,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

The amplifier is designed using Class-D amplifier technology and delivers an output power of 40 Watt to constant voltage (100V and 70V) or low impedance (4 Ohm) audio systems. A switch mode power supply allows compatibility with a wide variation of mains voltages for global compatibility.
A stereo line input allows connection for a wide variation of audio sources such as media players, radio tuners, internet audio players, … and many more. A balanced mic/line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled, and compatibility with voice file players is guaranteed by the wide gain adjustment possibility (0 dB – +50 dB).

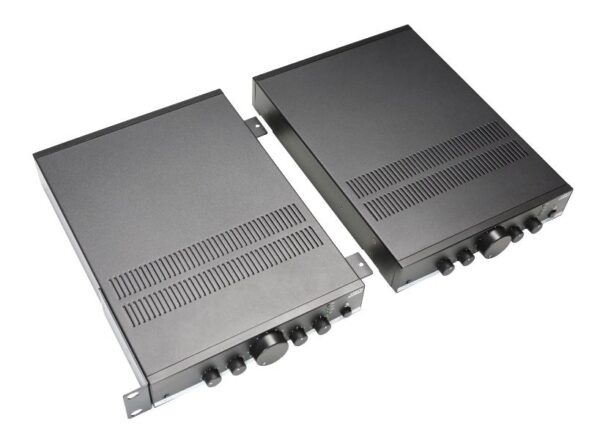

The COM104 is a table-top standing device, while rack mounting in 10.5″ or 19″ equipment racks is possible using an optionally available mounting set (MBS310).

Highlights:
unbalanced stereo line input
1 x Microphone input
Priority audio inputs with phantom power
1 x Priority mute contact
Terminal block output connections (4Ω, 70V, 100V)
Compact design
Low impedance & constant voltage output
Table top or half rackspace installation

Applications:
Bars, restaurants
Retail
Public facilities
Corporate spaces

System specifications:
Inputs:
Balanced Microphone:
Sensitivity (1W/1m): -0 dB ~ +50 dB
Connector: 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Type: 1 x Balanced Microphone
Unbalanced Stereo:
Type: 1 x Stereo Unbalanced Line
Connector: RCA / 3.5 mm Jack
Sensitivity (1W/1m): -4 dB ~ +20 dB
Frequency Response (± 3 dB): 20 Hz – 20 kHz
Signal / Noise: > 90 dB
THD+N (@ 1 kHz): < 0.5% (1/2 Rated Power) Crosstalk (@ 1 kHz): > 70 dB
Technology: Class-D
Power Supply: Switching mode
Operating: 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs: Balanced Microphone Phantom Power: 15 V DC, Priority mute contact
Outputs:
Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Voltage / Impedance: 100/ 70 V / 4 Ω
Protection: Amplifier: DC Short circuit, Over heating, Over load, Signal limiting
Cooling: Convection cooled
Operating temperature: 0° ~ 40° @ 95% Humidity
RMS Power @ 4 Ω: 1 x 40 W

Product Features:
Dimensions (W x H x D): 217.5 x 43.7 x 300 mm
Weight: 3 kg
Mounting: 1/2 19” / 1 HE or tabletop
Construction: Steel
Colour: Black
Accessories: Optional: 19″ Rackmount adapter
